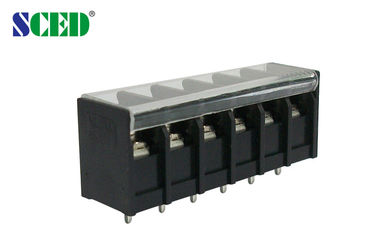

2-24 Number Contacts Barrier Terminal Block Connector With Cover 7.62mm Pitch

2-24 Nomor Kontak Barrier Terminal Block Connector Dengan Penutup 7.62mm Pitch

Produk - Blok terminal penghalang
  • Menyoroti

    blok terminal listrik

    ,

    blok terminal tipe penghalang

    ,

    Konektor Blok Terminal Barrier 7.62mm Pitch

  • Melempar
    7.62mm
  • Listrik nominal
    15A
  • Tegangan nominal
    300V
  • Jenis
    Blok Terminal Penghalang, Blok terminal daya, Blok terminal listrik
  • Rentang Kawat
    14-22
  • Polandia
    2-24 tiang
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TB762-21-C
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

2-24 Nomor Kontak Barrier Terminal Block Connector Dengan Penutup 7.62mm Pitch

  • 2-24 Number Contacts Barrier Terminal Block Connector With Cover 7.62mm Pitch
  • 2-24 Number Contacts Barrier Terminal Block Connector With Cover 7.62mm Pitch
  • 2-24 Number Contacts Barrier Terminal Block Connector With Cover 7.62mm Pitch
  • 2-24 Number Contacts Barrier Terminal Block Connector With Cover 7.62mm Pitch
Dapatkan Harga Hubungi sekarang



2-24 Number Contacts barrier terminal block connector With Cover 7.62mm Pitch





Parameter and Drawing Specifications:





UL Technical Data

B

C

D

Rated Voltage / Current                  V/A

300 / 15



300 / 10

Wire Range                                    AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

500 / 24

630 / 24

800 / 24

Rated Surge Voltage                      KV

6

6

6

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                      mm

φ1.9

Stripping Length                          mm

7-8

Screw / Torque                          / lbf.in

M 3 / 5-7







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



 2-24 Nomor Kontak Barrier Terminal Block Connector Dengan Penutup 7.62mm Pitch 0





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response

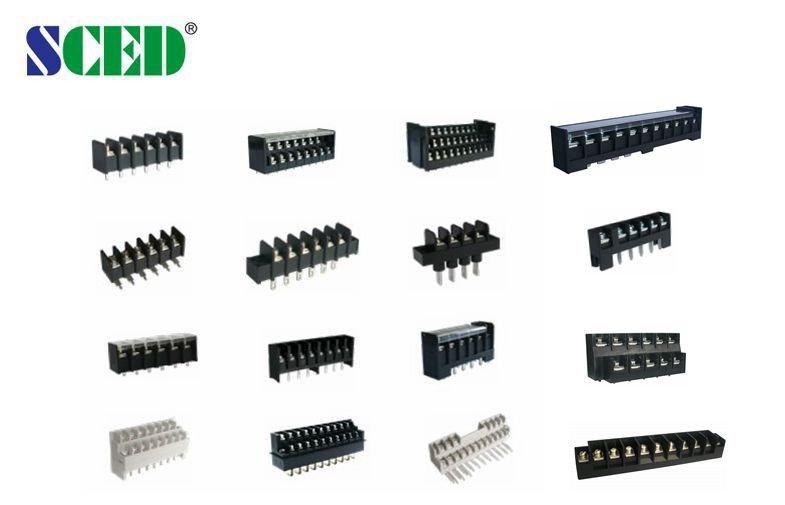

  4. Full range products for selection
  5. Flexible to design the exact part per customers’ deman

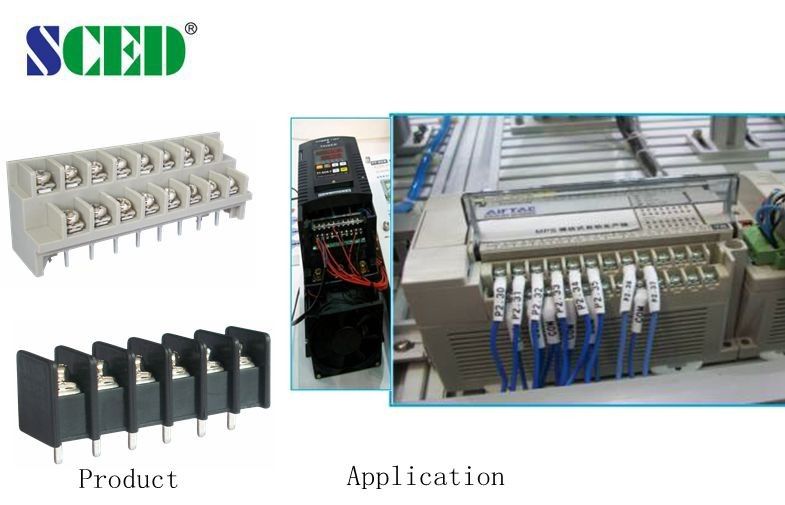

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



2-24 Nomor Kontak Barrier Terminal Block Connector Dengan Penutup 7.62mm Pitch 1

2-24 Nomor Kontak Barrier Terminal Block Connector Dengan Penutup 7.62mm Pitch 2
