5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal

5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal

Produk - Blok Terminal PCB
  • Menyoroti

    blok terminal sekrup pcb

    ,

    blok terminal pemasangan pcb

    ,

    Konektor Blok Terminal PCB 5.0mm

  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, Pasokan Listrik, Lampu Listrik, Kontrol Industri
  • Jumlah Kontak
    2P-24P
  • Melempar
    5.0mm
  • Listrik nominal
    10A
  • Tegangan nominal
    300V
  • Jenis
    Blok Terminal PCB, blok terminal pemasangan PCB, blok terminal sekrup PCB
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TJ500-04-T1
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal

  • 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal
  • 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal
  • 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal
  • 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal
Dapatkan Harga Hubungi sekarang

5.0mm PCB Terminal Block Connectors-Terminals 2P-24P Screw Clamp Terminal





Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.





Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks, Euro type Raising series



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                                AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current               V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                    KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                   mm

φ1.4

Stripping Length                       mm

6-7

Screw / Torque                       / lbf.in

M3 / 4.4-5.3



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal 0

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers' demand

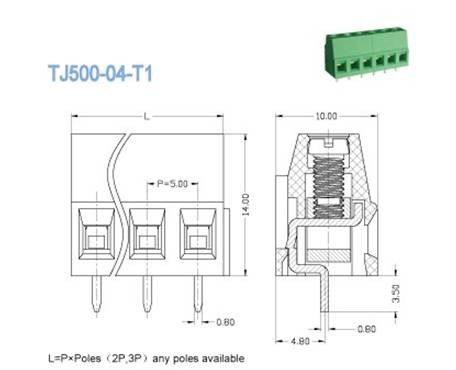

Drawing photo:



5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal 1



5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal 2
