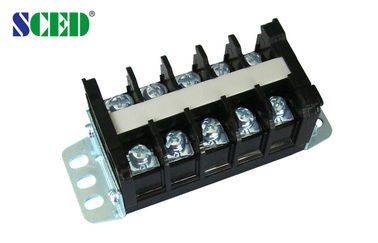

600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block

600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block

Produk - Blok terminal arus tinggi
  • Menyoroti

    terminal kawat pcb

    ,

    blok terminal daya

    ,

    Blok Terminal Arus Tinggi 14.00mm

  • Jumlah Kontak
    2P-28P
  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Sakelar, Catu Daya, Penerangan Listrik, Kontrol Industri
  • Melempar
    14.00mm
  • Listrik nominal
    40A
  • Warna
    Hitam
  • Tegangan nominal
    600V
  • Jenis
    Blok Terminal Penghalang Arus Tinggi, Blok terminal daya, Blok terminal listrik
  • Rentang Kawat
    8-22
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TR40-01-BM0
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block

  • 600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block
  • 600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block
  • 600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block
Dapatkan Harga Hubungi sekarang

600V High Current Terminal Block 14.00mm 40A Brass Screw Clamp Terminal Connector





Applications:



PCB, Frequency Converters,

Server Site, Switch,

Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication,

Security, Medicine Equipment, Military, Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 40

600 / 40



Wire Range                               AWG

8-22

8-22



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage                    KV

8

8

8

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

10-12

Screw / Torque                    / lbf.in

M5 / 14-18

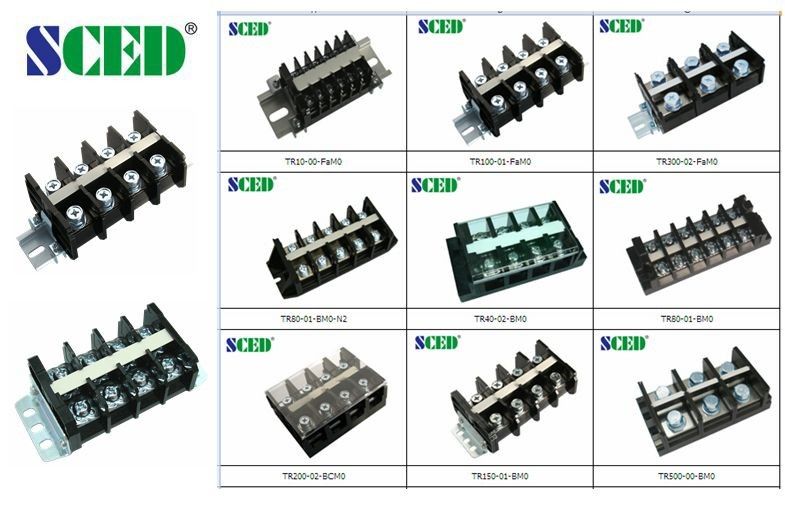

Drawing Photo:



600V High Current Terminal Block 14.00mm 40A , Brass Screw Clamp Terminal Connector Block 0
