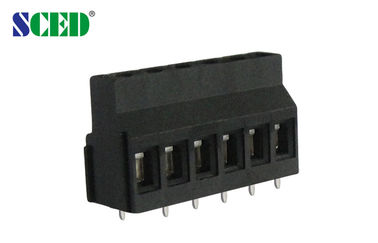

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG

Produk - PCB Screw Terminal Block
  • Menyoroti

    screw type terminal block

    ,

    screw connection terminal block

  • Rentang Kawat
    12-24 AWG
  • Polandia
    2-24 tiang
  • Baut
    Baja M3
  • Melempar
    5.08mm
  • Saat ini
    10A
  • Voltase
    300V
  • Bahan Isolasi
    PA66
  • Kelas Inflammability
    UL94-V0
  • Torsi
    4.4-5.3 lbf.in
  • Pengupasan Panjang
    6-7mm
  • Place of Origin
    Guangdong, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE, CUL, CQC and VDE etc.
  • Model Number
    TJ508-18
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Harga
    USD 0.051-0.120 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG

  • Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
  • Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
  • Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
  • Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG
Dapatkan Harga Hubungi sekarang

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG



Applications:

Our products can be used in lots of fileds and industries, such as

1.Power Supply, Communication, Industrial Control, Automation

2.PCB, Electronics, Electric Lighting, Frequency Converters

3. Military, Medical Equipment, Rail Transportation, Security and so on.



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



Wire Inlet:■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Decks:■Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG 0

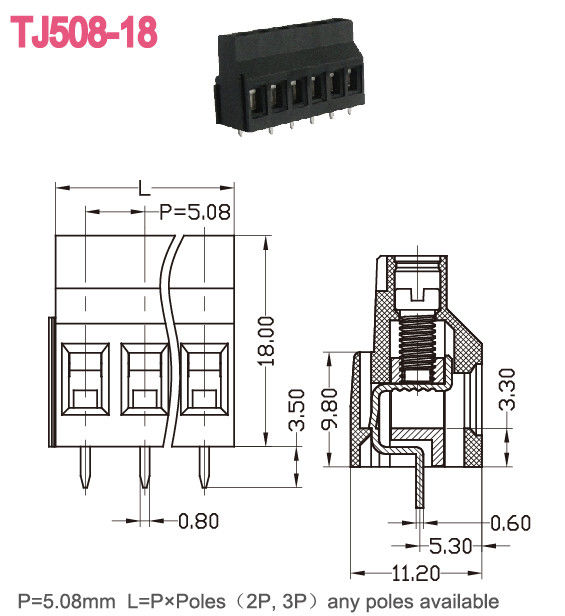

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 10   300 / 10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. More than 1000 models
  2. OEM and ODM service
  3. High quality and competitive price
  4. Good service

Black PCB Screw Terminal Block Brass Euro Raising Type Series 300V 10A 12-24 AWG 1
