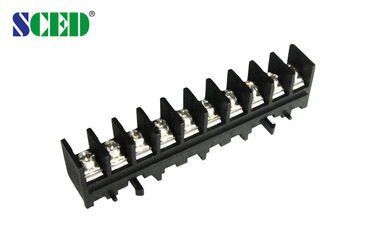

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Produk - Blok terminal penghalang
  • Menyoroti

    electrical terminal block

    ,

    barrier type terminal block

  • Nomor kontak
    2P-18P
  • Nada
    7.62mm
  • Populer saat ini
    15A
  • Tegangan pengenal
    300V
  • Berbagai Wire
    14-22 AWG
  • Warna
    Hitam, Warna lain tersedia
  • Tipe
    Blok Terminal Penghalang, Blok terminal daya, Blok terminal listrik
  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, dll
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TB762-20V
  • Minimum Order Quantity
    500pcs
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

  • Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
  • Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
  • Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
Dapatkan Harga Hubungi sekarang

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                               AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

500 / 24

630 / 24

800 / 24

Rated Surge Voltage                     KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                   mm

φ1.9

Stripping Length                       mm

7-8

Screw / Torque                        / lbf.in

M 3 / 5-7

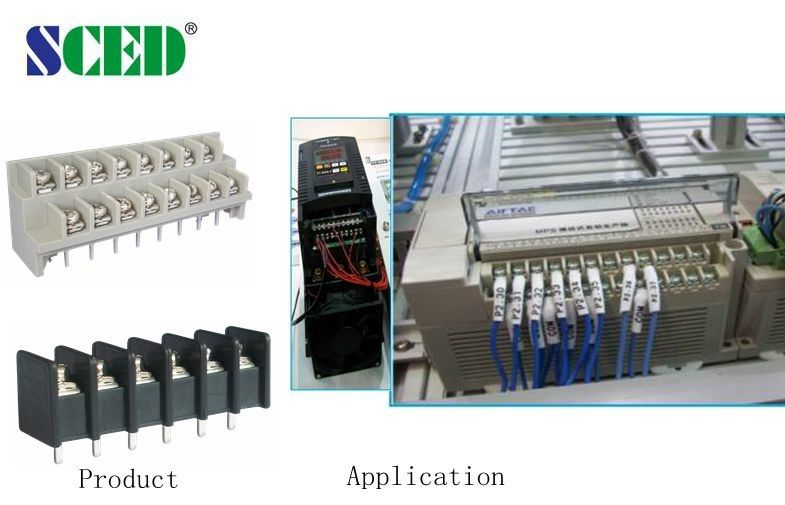

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

 Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE 0





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Drawing Photo

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE 1



Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE 2
