Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Kawat Inlet: | Saluran masuk kawat vertikal | Aplikasi: | PCB, Konverter Frekuensi, dll. |
|---|---|---|---|
| warna: | hijau | Nomor kontak: | 2-22 pin |
| Nada: | 5.08mm | Populer saat ini: | 18A |
| Tegangan pengenal: | 300V | Mengetik: | Blok Terminal Perempuan Pluggable |
| Cahaya Tinggi: | power terminal block connector,electric terminal block |
||

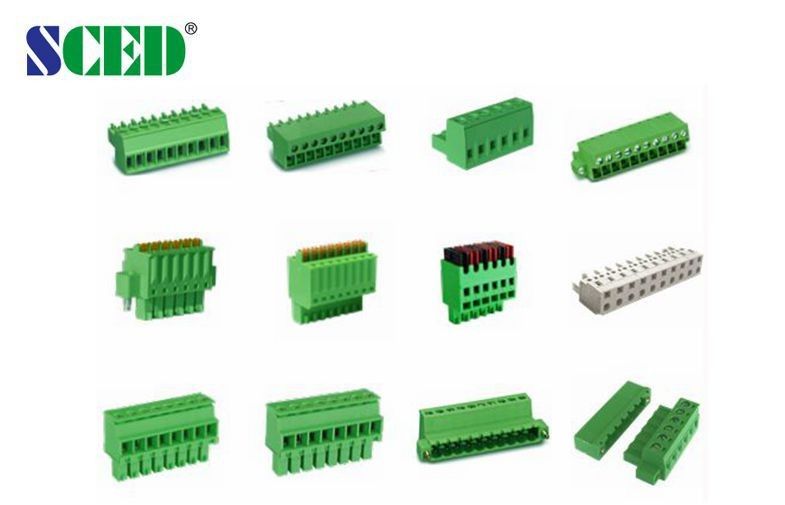

Femae Pluggable Terminal Block 2 - 22 Poles 18A Screwless Terminal Connector
Quick Detail
1. Pluggable terminal blocks is widely used in servo drive, security commucation, power industry, energy conservation and etc.
1. can be connected with TP508H-06F

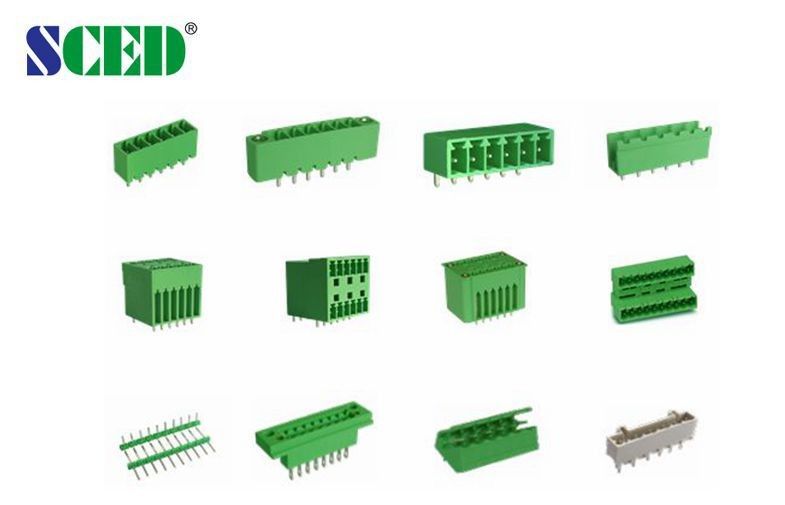

2. The pluggable system work toghter by plug and header.
3. The main characteristics is they can be achieved power on or off freely.
4. The plug can be plugged in and out very conveniently.
5. Material: Plastic housing is PA66(UL94 V-0), operating temperature: -40℃~+105℃ Clamp cage and header terminal using brass, spring clamp with phosphor bronze, screw using high quality steel.
Standard color: Green color. Other colors also available, please refer to below How to Order and
select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
|
|
Wire Range AWG |
|
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 24 |
320 / 24 |
630 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 (THR: PA46, UL94, V-0) |
||
|
Terminal / Plating |
Copper / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
PinDimension mm |
0.4 x 1.1 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo
can be connected with TP508H-06F
