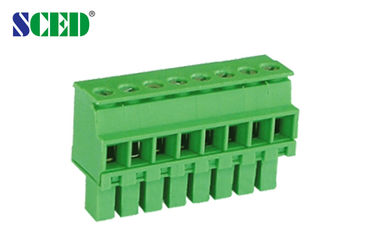

2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal

2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal

Produk - Plug In Terminal Block
  • Menyoroti

    power terminal block connector

    ,

    electric terminal block

  • Nada
    3.81mm
  • Mengetik
    Soket perempuan
  • Warna
    hijau
  • Polandia
    2-22 tiang
  • Arus
    8A
  • tegangan
    300V
  • Berbagai Wire
    16-30 AWG
  • Sekrup
    M2
  • Panjang Pengupasan
    7mm
  • Clamp Cage
    Kuningan
  • Place of Origin
    Guangdong China
  • Nama merek
    SCED
  • Sertifikasi
    CE,UL
  • Model Number
    TP381P-02
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.048-0.096 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal

  • 2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal
  • 2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal
  • 2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal
  • 2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal
  • 2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal
  • 2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal
Dapatkan Harga Hubungi sekarang

2-22 Number Of Contact Plug In Terminal Connector Block 3.81mm Female Terminal





Detailed product Description:

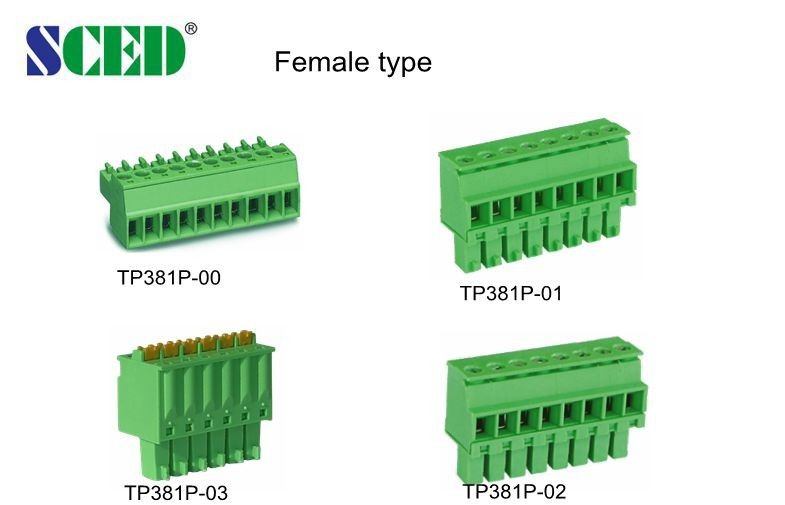

Plug, Female Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



Levels: ■Single Level; □Double Levels; □Triple Levels



Standard Color: Green.



Other colors are also available, please refer to below How to Order and select the color you want.

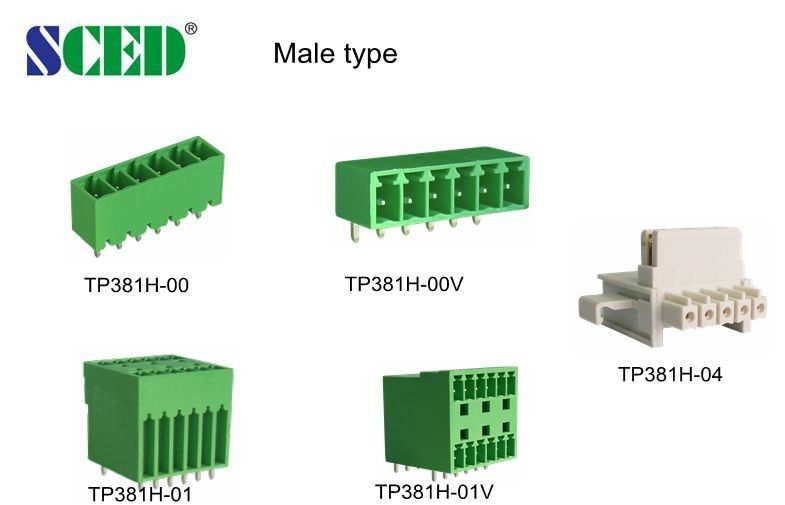

This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05.



How to order:



2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal 0



Applications:

PCB, Medical Equipment, Frequency Converters, Military, Server Site, Elevator,  Switch, Communication, Power Supply, Automation, Electric Lighting, Industry Control, Rail Transportation and so on.



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
Wire Range AWG 16-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M2 / 2-2.2



Competitive Advantage:



  1. Full range products for selection
  2. OEM and ODM service
  3. Good after-sales service
  4. Stable high quality
  5. Competitive price

2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal 1

2-22 Number Of Contact Plug In Power Terminal Block Connector 3.81mm Female Terminal 2
