Tempat asal: | China |
Nama merek: | SCED |
Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
Nomor model: | TJ500-09 |
Kuantitas min Order: | 1000 Piece/Pieces |
---|---|
Harga: | USD 0.05-0.15 Per Pole |
Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Waktu pengiriman: | 5-20 Working Days |
Syarat-syarat pembayaran: | T/T, L/C |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Saat ini: | 10A | Voltase: | 300V |
---|---|---|---|
Melempar: | 5.0mm | Rentang Kawat: | 14-20 AWG |
Bahan Isolasi: | PA66 | Kelas Inflammability: | UL94-V0 |
Terminal: | Kuningan | pelapisan: | berlapis timah |
Pengupasan Panjang: | 9-10mm | Menghubungkan Kapasitas: | 1.5mm2 |
Cahaya Tinggi: | spring clamp terminal block,wiring terminal blocks |

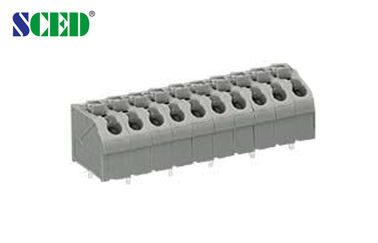

Pitch 5.0mm Spring Terminal Block 2-24 Poles Brass 300V/10A Screwless PA66
Detailed product Description:
Pitch 5.00mm, 300V 10A, 2P-24P, Spring Terminal blocks, Screwless terminals
□ Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■ Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

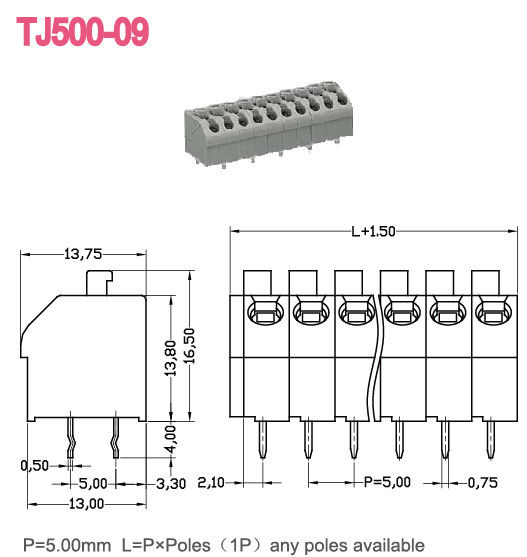

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 | ||
Wire Range AWG | 14-20 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 320 / 10 | 320 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Spring / Plating | Stainless Steel / - | ||
Terminal / Plating | Brass / Tin Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.3 | ||
Stripping Length mm | 9-10 |
Competitive Advantage:
