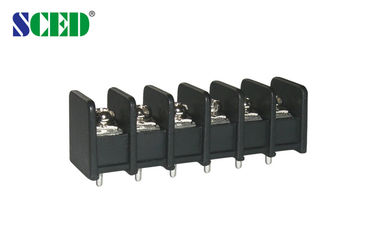

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal

Produk - Blok terminal penghalang
  • Menyoroti

    electrical terminal block

    ,

    barrier type terminal block

  • Polandia
    2-32 tiang
  • Nada
    8.255mm
  • Arus
    20A
  • tegangan
    300V
  • Plastik
    PBT
  • Sekrup
    M3
  • Kelas Peradangan
    UL94, V-0
  • Sertifikat
    UL
  • Place of Origin
    Guangdong, China
  • Nama merek
    SCED
  • Sertifikasi
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TB825-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.04-0.08 per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal

  • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
  • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
  • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
  • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
Dapatkan Harga Hubungi sekarang

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal



Detailed product Description:



Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current                V/A

300/20



300/10

Wire Range                                 AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                  V/A

320 / 32

400 / 32

630 / 32

Rated Surge Voltage                      KV

4

4

4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                       mm

φ1.8

Stripping Length                           mm

6-7

Screw / Torque                          / lbf.in

M 3 / 5-7



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response

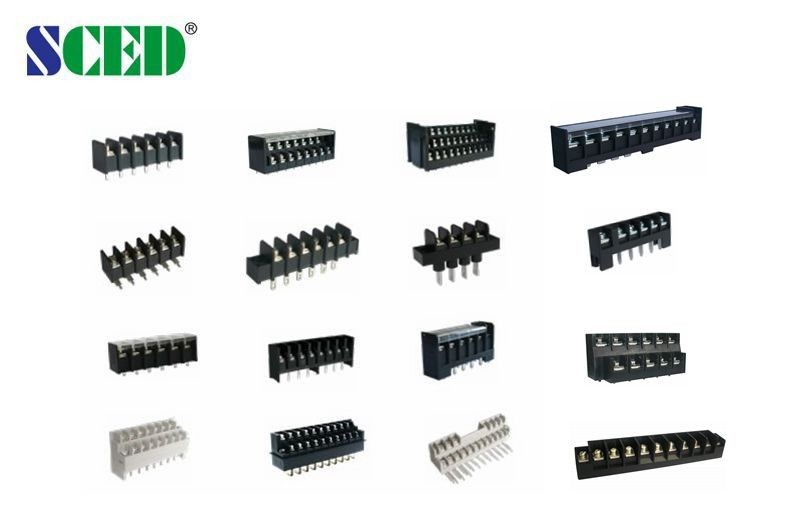

  4. Full range products for selection
  5. OEM service

Drawing photo



8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal 0
