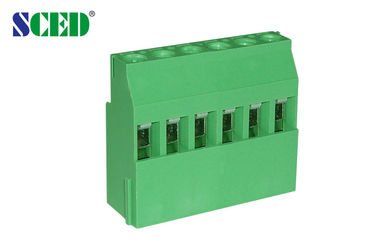

Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

Produk - PCB Screw Terminal Block
  • Menyoroti

    screw type terminal block

    ,

    screw connection terminal block

  • Melempar
    5.08mm
  • Voltase
    300V
  • Saat ini
    10A
  • Jangkauan Kawat
    12-26 AWG
  • Plastik
    PA66
  • Baut
    M3
  • Torsi
    4.4-5.3 lbf.in
  • Resistensi Kontak
    Kurang dari 8mΩ
  • Resistansi Isolasi
    Di atas DC500V, 500MΩ
  • Kelas Inflammability
    UL94, V-0
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    UL,CE
  • Model Number
    TJ508-08V
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Harga
    USD 0.051-0.120 PER POLE
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

  • Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass
  • Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass
  • Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass
Dapatkan Harga Hubungi sekarang

Euro Type PCB Screw Terminal Block 300V 15A Green 5.08mm Pitch Brass



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

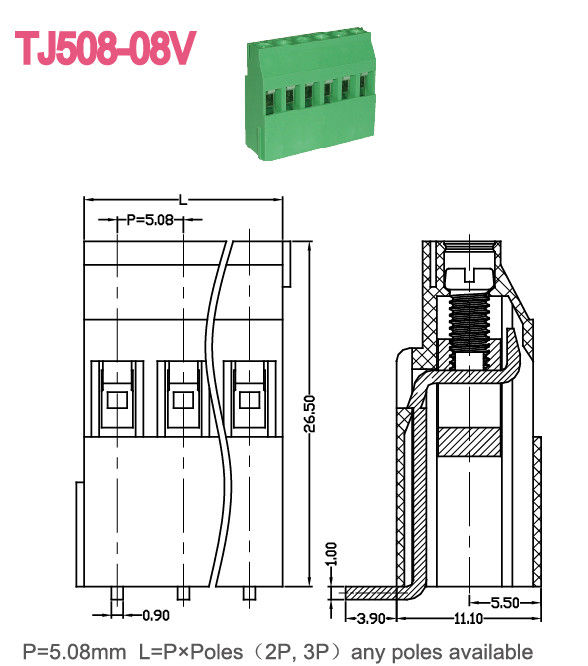

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.6
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand


Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass 1
