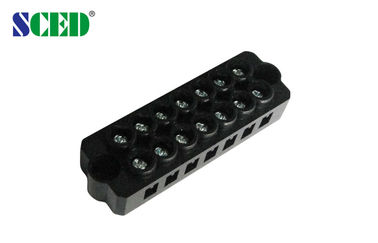

7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw

7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw

Produk - Feed melalui Terminal Block
  • Menyoroti

    pcb screw terminal blocks

    ,

    pcb mount terminal block

  • Melempar
    7.4mm
  • Jangkauan Kawat
    12-16 AWG
  • Polandia
    7 tiang
  • Saat ini
    20A
  • Voltase
    300V
  • Baut
    M4
  • Torsi
    4.4-5.3 lbf.in
  • Pengupasan Panjang
    5-6mm
  • Penjepit Kandang
    Kuningan
  • Bahan Isolasi
    PC
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    CE, UL, CUL, CQC and VDE etc.
  • Model Number
    TR-3N-04
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.281-0.569 Per Pc
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw

  • 7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw
  • 7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw
  • 7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw
Dapatkan Harga Hubungi sekarang



7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw



Detailed product Description:



Pitch 7.40mm, 300V 20A, 7P, Feed-Through Terminal Blocks



Wire Range: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Level; □Double levels; □Triple levels

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:



7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw 0



Applications:

Our products will be used on Communication, Automation, Rail Transportation, Power Supply, PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Security, Medical Equipment and so on.

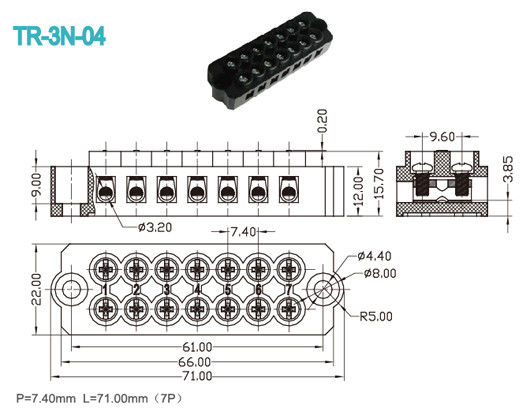

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20 300 / 20
Wire Range AWG 12-16 12-16
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 20 320 / 20 400 / 20
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board / Plating
Clamp Cage / Plating Brass / Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 5-6
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. Good quality and competitive price.

7 Poles plug in terminal block connector 300V / 20A Black 12-16 AWG Brass M3 Screw 1
