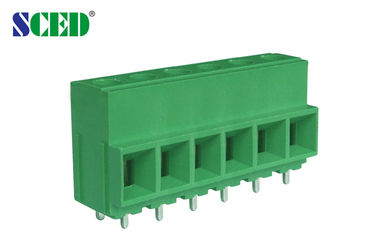

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles

Produk - PCB Screw Terminal Block
  • Menyoroti

    screw type terminal block

    ,

    screw terminal block connector

  • Bahan Isolasi
    PA66
  • Kelas Inflammability
    UL94-V0
  • Baut
    M4
  • Torsi
    10.6-13 lbf.in
  • Penjepit Kandang
    Kuningan
  • Polandia
    2-16 tiang
  • Melempar
    10.16mm
  • Saat ini
    57A
  • Voltase
    300V
  • Jangkauan Kawat
    6-22 AWG
  • Place of Origin
    Guangdong, China
  • Nama merek
    SCED
  • Sertifikasi
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TJ952-01
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Harga
    USD 0.114-0.228 PER POLE
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles

  • 57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
  • 57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
  • 57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
Dapatkan Harga Hubungi sekarang

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles



Detailed product Description:



Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wire Inlet:■Right angle wire inlet

Decks:■Single Deck; □Double decks; □Triple decks

Standard color: Green.

Other colors are also available, please refer to below How to Order and select the color you want.



How to order:



57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles 0



Applications:

Euro terminal blocks are widely used in industry and automatic control, power, PCB, frequency conversion, electronics and so on.

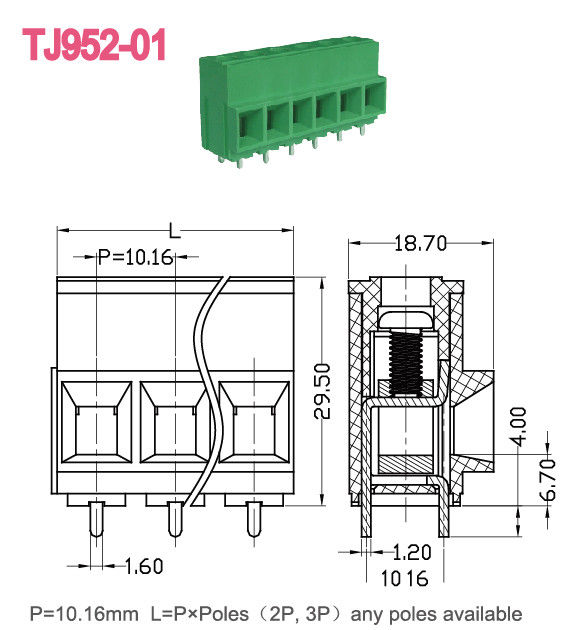

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/57 300/57
Wire Range AWG 6-22 6-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 690 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ2.4
Stripping Length mm 9-11
Screw / Torque / lbf.in M4 / 10.6-13



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. Good service and quick response
  4. OEM and ODM service
  5. Stable good quality and competitive price

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles 1
