40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4

40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4

Produk - Blok Terminal Daya
  • Menyoroti

    power distribution terminal block

    ,

    electric terminal block

  • Saat ini
    40A
  • Melempar
    13mm
  • Polandia
    2-18 kutub
  • Voltase
    600V
  • Jangkauan Kawat
    20-8 AWG
  • Baut
    M4
  • Bahan Isolasi
    PBT
  • Warna
    Hitam
  • Tegangan Lonjakan Terukur
    Tidak ada kelainan dalam 1 menit
  • Resistensi Kontak
    Kurang dari 8mΩ
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    CE,UL, CUL, CQC and VDE etc.
  • Model Number
    TB1300-03-C
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.076-0.142 PER POLE
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

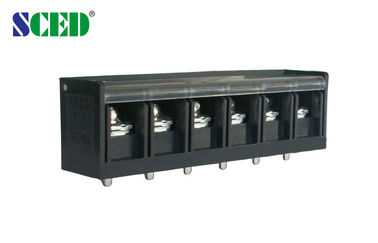

40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4

  • 40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4
  • 40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4
  • 40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4
Dapatkan Harga Hubungi sekarang

40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4





Detailed product Description:

Pitch 13.00mm, 600V 40A, 2-18P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet

■Single Level

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4 0

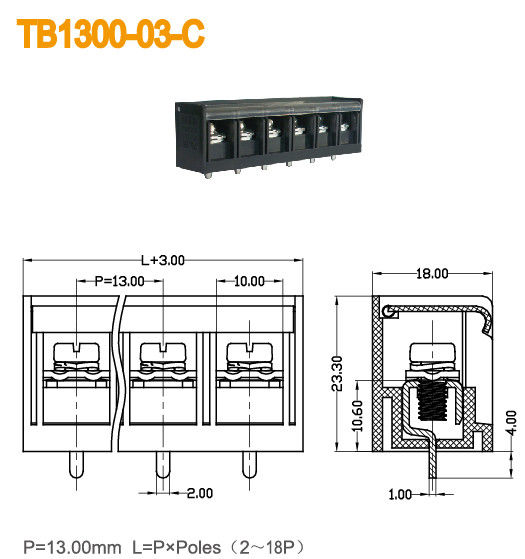

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600/40 600/40 600/5
Wire Range AWG 8-20 8-20 8-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 10-11
Screw / Torque / lbf.in M 4 / 10.6-13



Applications:

1.Power Supply, Automation, Industrial Control

2.Security, Military, Medical Equipment

3.Server Site, Frequency Converters, Switch

4.Communication, Rail Transportation, Elevators and so on.



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. High quality and competitive price

40A Power Terminal Blocks Barrier with Plastic Cover 13mm Pitch 600V M4 1
