Menyoroti
power terminal block connector
,electric terminal block
-
Berbagai Wire20-22
-
Tingkat Menghubungkan0,5
-
Tegangan lonjakan6KV
-
ImflammabilitasUL94, V-0
-
Perumahan bahanPA66
-
Nada3.81mm
-
Arus5A
-
tegangan300V
-
Place of OriginShenzhen, China
-
Nama merekSCED
-
SertifikasiUL, CE
-
Model NumberTP381P-08
-
Minimum Order Quantity500
-
HargaGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

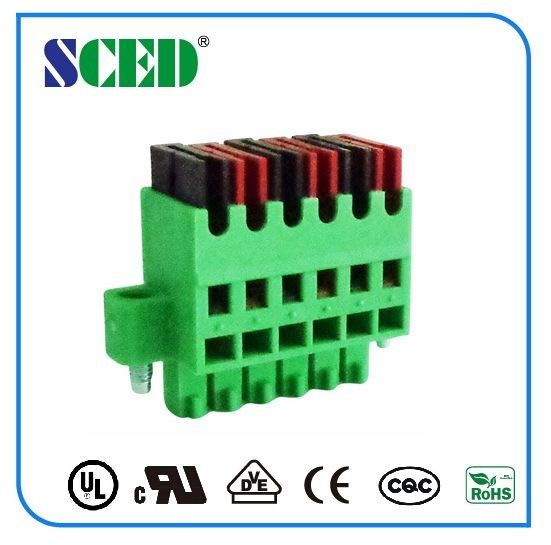

3.81mm Spring Clamp Electric Plug in Terminal Block For Server Site
2-24 Number Of Contact Plug in Terminal Block 3.81mm Spring Clamp Electric Terminal
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 5 |
|
|
|
Wire Range AWG |
20-22 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
400/6 |
400/6 |
400/6 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
0.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
|
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
|
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
