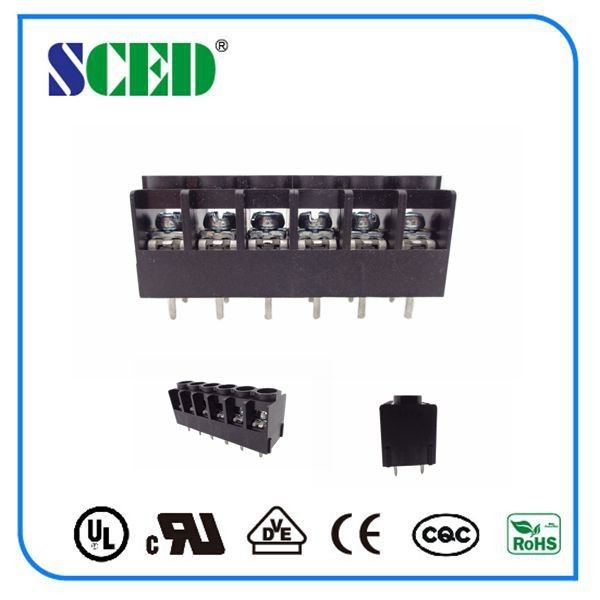

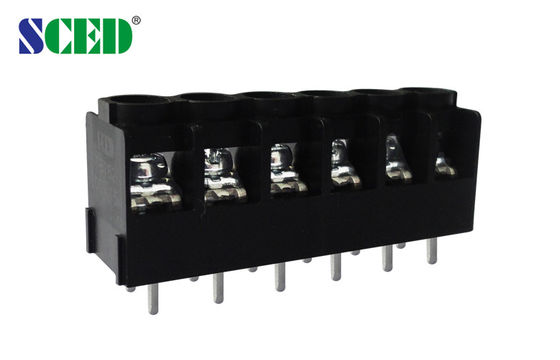

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

Produk - Blok terminal penghalang
  • Menyoroti

    electrical terminal block

    ,

    pcb terminal blocks

  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri
  • Warna
    Hitam
  • Populer saat ini
    15A
  • Tegangan pengenal
    300V
  • Tipe
    Blok Terminal Penghalang
  • Berbagai Wire
    14-22 AWG
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TB762-12
  • Minimum Order Quantity
    500
  • Harga
    Get the latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters

  • 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters
  • 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters
  • 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters
Dapatkan Harga Hubungi sekarang

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Small Industrial Project





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                               AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                  V/A

400 / 24

630 / 17

630 / 24

Rated Surge Voltage                      KV

6

6

4

Rated Connecting Capacity           mm2

2..5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Zinc plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

8-9

Screw / Torque                    / lbf.in

M 3 / 5-7







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:

 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters 0





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters 1

 7.50mm Barrier Terminal Block Black Screw Clamp Connector For Frequency Converters 2





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Tag:

electrical terminal block

barrier type terminal block

pcb terminal blocks
