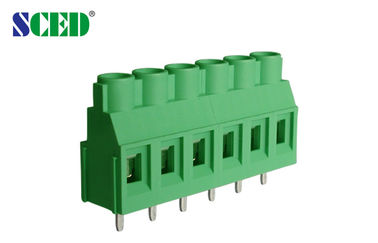

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

Produk - PCB Screw Terminal Block
  • Menyoroti

    screw type terminal block

    ,

    screw terminal block connector

  • Melempar
    9.52mm
  • Warna
    Hijau
  • Plastik
    PA66
  • Kelas Inflammability
    UL94-V0
  • Baut
    M3
  • Pengupasan Panjang
    7-8mm
  • Terminal
    Kuningan
  • Resistensi Kontak
    Kurang dari 8mΩ
  • Tegangan Lonjakan Terukur
    Tidak ada kelainan dalam 1 menit
  • Resistansi isolasi
    Di atas DC500V, 500MΩ
  • Place of Origin
    Guangdong, China
  • Nama merek
    SCED
  • Sertifikasi
    CE,UL
  • Model Number
    TJ952-00
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.051-0.12 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3

  • 9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3
  • 9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3
  • 9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3
Dapatkan Harga Hubungi sekarang

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3



Detailed product Description:



Pitch 9.52mm, 300V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series

Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors can be also available, please refer to below How to Order and select the color you want.



How to order:

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3 0

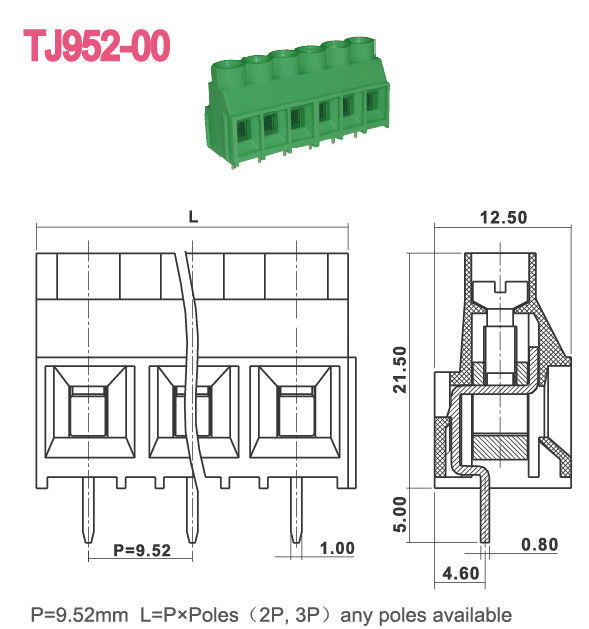

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30 300 / 30
Wire Range AWG 10-30 10-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 30 1000 / 30 1000 / 30
Rated Surge Voltage KV 6 8 6
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3





Applications:



1. Automation, PCB, Medical Equipment

2. Industrial Control, Security, Power Supply

3. Serve Site, Switch, Rail Transportation

4. Communication, Electric Lighting, Frequency Converters

5. Elevator and CCTV and so on.



Competitive Advantage:



  1. Years of experience in designing and manufacturing
  2. More than 1000 models for selection
  3. OEM and ODM service
  4. Quick delivery
  5. Good after-sales service
  6. Stable high quality
  7. Competitive price

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3 1
