300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks

300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks

Produk - Plug In Terminal Block
  • Menyoroti

    power terminal block connector

    ,

    electric terminal block

  • Kawat Inlet
    Inlet kawat sudut kanan
  • Warna
    hijau
  • Nomor kontak
    2P-22P
  • Nada
    3.81mm
  • Populer saat ini
    8A
  • Tegangan pengenal
    300V
  • Mengetik
    Pasang Blok Terminal, Blok Terminal Pluggable, Blok Terminal Plug-in
  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TP381H-00V
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks

  • 300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
  • 300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
  • 300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
Dapatkan Harga Hubungi sekarang





300V 8A PCB Male Plug In Terminal Block Green Right Angle Female Sockets Terminal




■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

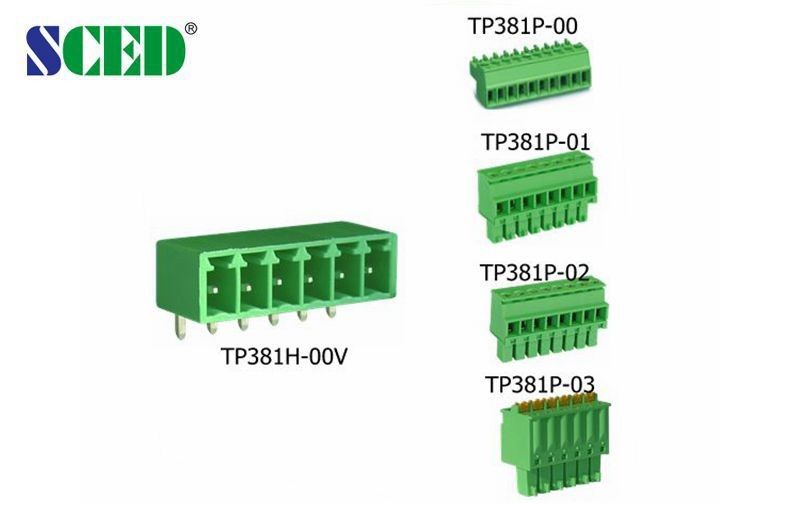

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:
300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current               V/A

300 / 8





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                  KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.2

Pin Dimension                         mm

0.8 x 0.8



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand





 Drawing photo



300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks 1
