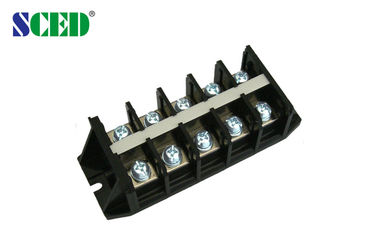

40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
-
Menyoroti
wiring terminal blocks
,power terminal block
-
Pitch14.80mm
-
ColorBlack
-
Voltage600V
-
Current40A
-
MaterialPC
-
ApplicationSwitch, Power Supply, Electric Lighting, Industry Control,
-
Place of OriginShenzhen, China
-
Nama merekSCED
-
SertifikasiUL, CE, CQC
-
Model NumberTR40-02-BM0
-
Minimum Order Quantity500
-
HargaGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
40A High Current Terminal Block 14.80mm Din Rail PCB Panel Mount Terminal Connector
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 8-22 | 8-22 | 10-20 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /40 | 1000 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 8 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 10-12 | ||
| Screw Torque mm | M4 / 14-18 | ||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,
Industry Control, Automation,
Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

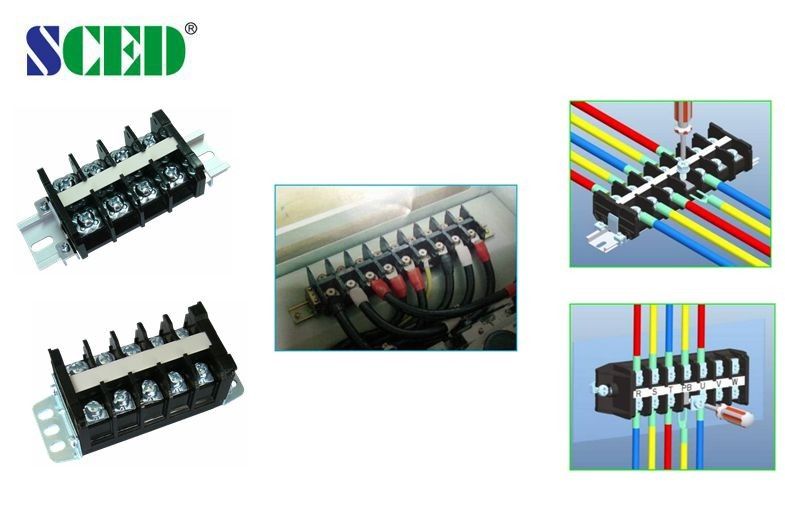

Drawing Photo
