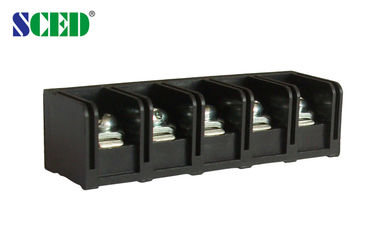

Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch

Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch

Produk - Blok Terminal Daya
  • Menyoroti

    power distribution terminal block

    ,

    power terminal block connector

  • Torsi
    10.6-13 lbf.in
  • Baut
    M4
  • Pengupasan Panjang
    10-12mm
  • pelapisan
    Timah dan Seng berlapis
  • Terminal
    Kuningan
  • Plastik
    PBT
  • Melempar
    11mm
  • Polandia
    2-12 tiang
  • Saat ini
    20A
  • Voltase
    600V
  • Place of Origin
    China
  • Nama merek
    SCED
  • Sertifikasi
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TB1100-15
  • Minimum Order Quantity
    500 Piece/Pieces
  • Harga
    USD 0.052-0.13 per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch

  • Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch
  • Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch
  • Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch
Dapatkan Harga Hubungi sekarang

20A Barrier Power Terminal Blocks Black 2-12 Poles Brass PBT 11mm Pitch



Detailed product Description:



Pitch 11.10mm, 600V 20A, 2P-12P, Barrier Terminal blocks, power terminal blocks

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Level: ■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.





How to order:



Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch 0

Parameter and Drawing Specifications:

UL Technical Data

B



 C D
Rated Voltage / Current V/A 600 / 20 600 / 20 600 / 5
Wire Range AWG 12-22 12 / 22 12-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 20 800 / 20 1000 / 20
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 10-12
Screw / Torque / lbf.in M 4 / 10.6-13





Applications:



1. PCB, Frequency Converters, Server Site, Switch

2. Power Supply, Electric Lighting, Industry Control, Automation

3. Rail Transportation, Communication, Electric Power, Security, Medical Equipment, Military etc..



Competitive Advantage:



  1. High quality and competitive price
  2. Quickly response
  3. More than 1000 models for selection
  4. Flexible to design the exact part per customers’ demand

Black 20A Barrier Power Terminal Blocks With 2-12 Poles Brass PBT 11mm Pitch 1
