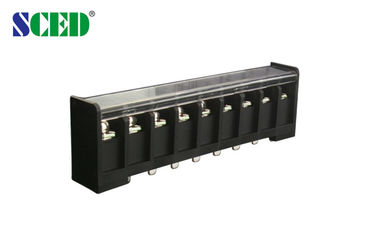

Plastic Cover Black Brass Barrier Terminal Block 600V 57A 17mm Pitch
-
Menyoroti
barrier type terminal block
,pcb terminal blocks
-
Melempar17mm
-
Polandia9 tiang
-
WarnaHitam
-
Voltase600V
-
Saat ini57A
-
BautM5
-
Pengupasan Panjang12-16mm
-
Torsi18-20 lbf.in
-
Jangkauan Kawat20-6 AWG
-
Bahan IsolasiPBT
-
Place of OriginGuangdong,China
-
Nama merekSCED
-
SertifikasiUL,CE,CUL,CQC,VDE etc.
-
Model NumberTB1450a-06-C
-
Minimum Order Quantity500 Piece/Pieces
-
HargaUSD 2.1-4.2 Per PCS
-
Packaging DetailsStandard Master Carton Dimension: 341 x 273 x 198mm
-
Delivery Time5-20 Working Days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
Plastic Cover Black Brass Barrier Terminal Block 600V 57A 17mm Pitch
Black Brass Barrier Terminal Block with Plastic Cover 600V 57A 17mm Pitch
Detailed product Description:
Pitch 17.00mm, 600V 57A, 9P, Barrier Terminal Blocks, Power Terminal Blocks
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment, Military etc..

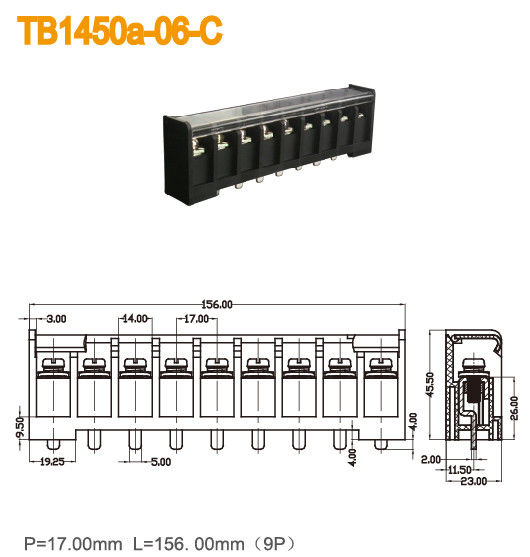

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 57 | 600 / 57 | 600 / 5 |
| Wire Range AWG | 20-6 | 20-6 | 20-6 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 57 | 1000 / 57 | 1000 / 57 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | 2.4x5.4 | ||
| Stripping Length mm | 12-16 | ||
| Screw / Torque / lbf.in | M 5 / 18-20 | ||
Competitive Advantage:
- Full range of products for selection
- Flexible to design the exact part per customers’ demand
- Stable high quality
- Competitive price
- CE,UL, CUL, CQC and VDE etc.
