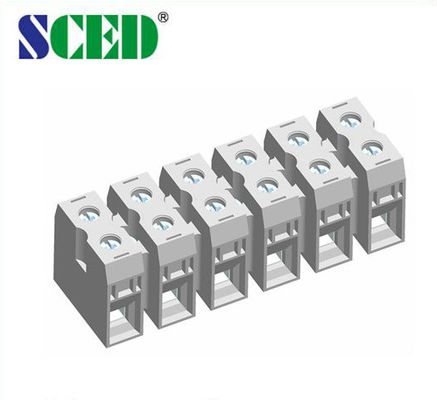

Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector

Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector

Produk - Panel Mount Terminal Block
  • Menyoroti

    panel mount terminal block connector

    ,

    pcb mount terminal blocks

  • Mengetik
    Pemasangan Panel
  • Nada
    13.50mm
  • Nomor kontak
    Setiap tiang yang tersedia
  • Berbagai Wire
    8-26 AWG
  • Tegangan pengenal
    600V
  • Populer saat ini
    50A
  • Warna
    abu-abu
  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TR-6N-01
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector

  • Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector
  • Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector
  • Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector
  • Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector
Dapatkan Harga Hubungi sekarang

600V 50A Panel Mount Terminal Block Connector Grey PA66 Copper Conduction Board Connector


Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

 Applications:

Transformer, power control, electrical equipment, frequency converter etc.

Parameter:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 50

600 /150



Wire Range                               AWG

8-26

8-26



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66/ UL94, V-0

Conduction Board Plating

Copper/Nickel Plated

Clamp Cage Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 4 / 8-10.6



Competitive Advantage:


Stable good quality, Competitive price, Quickly response, Full range products for selection, Flexible to design the exact part per customers’ demand

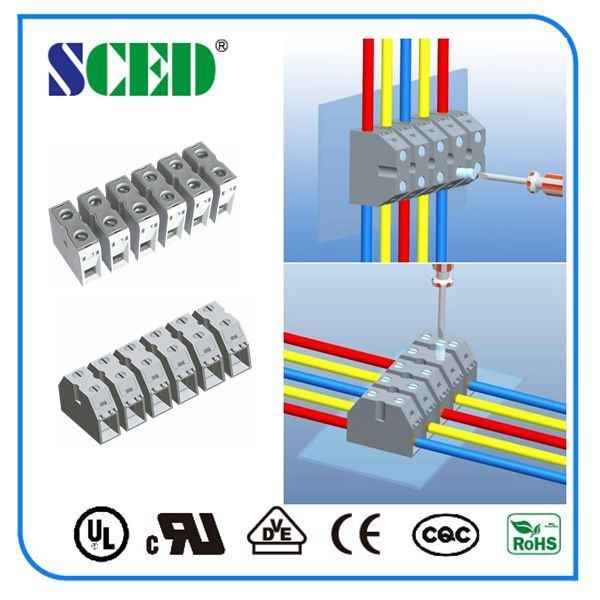

Drawing Photo



Grey 600V 50A Panel Mount Terminal Block Connector , PA66 Copper Conduction Board Connector 0



More items interest, please feel free to contact us.
