Tempat asal: | Shenzhen, China |
Nama merek: | SCED |
Sertifikasi: | UL, CE |
Nomor model: | TR-3N |
Kuantitas min Order: | 500 |
---|---|
Harga: | Get latest price |
Kemasan rincian: | Standard Export Carton |
Waktu pengiriman: | 7-20 working days |
Syarat-syarat pembayaran: | T/T |
Menyediakan kemampuan: | 1KK poles each monthly |
Kawat Inlet: | Inlet kawat sudut kanan | Lebar Terminal: | 5.2mm |
---|---|---|---|
Berbagai Wire: | 28-12 | Tegangan pengenal: | 600V |
Populer saat ini: | 20A | Warna: | abu-abu |
Aplikasi: | Power Supply, industri pengendalian, otomatisasi, rel listrik transportasi, komunikasi, Elev | Nama Produk: | Konektor terminal pemasangan rel |
Sampel: | TERSEDIA | ||
Cahaya Tinggi: | grounding terminal block,din rail mount terminal blocks |
Detailed product Description:

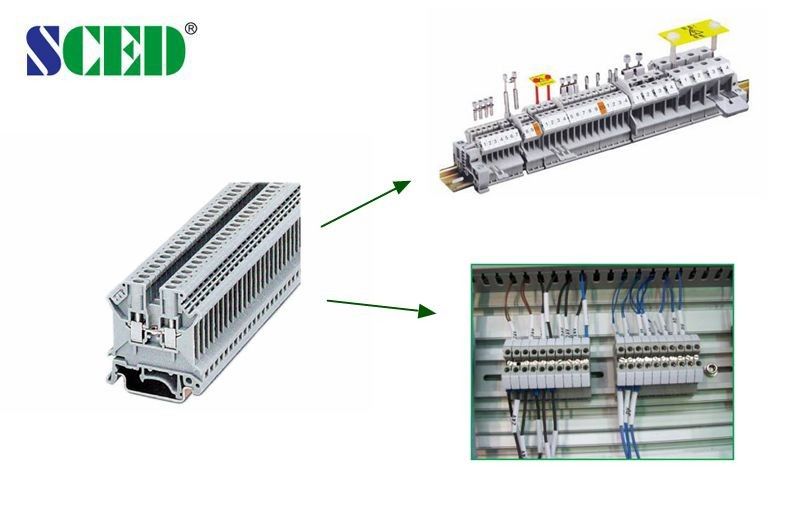

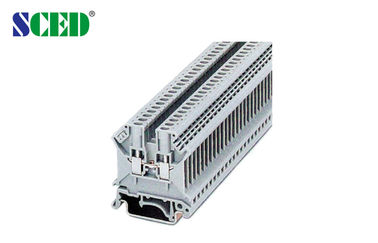

2.5mm2 Rail Mounted Terminal Blocks 600V Feed Through Terminal Connector Grey

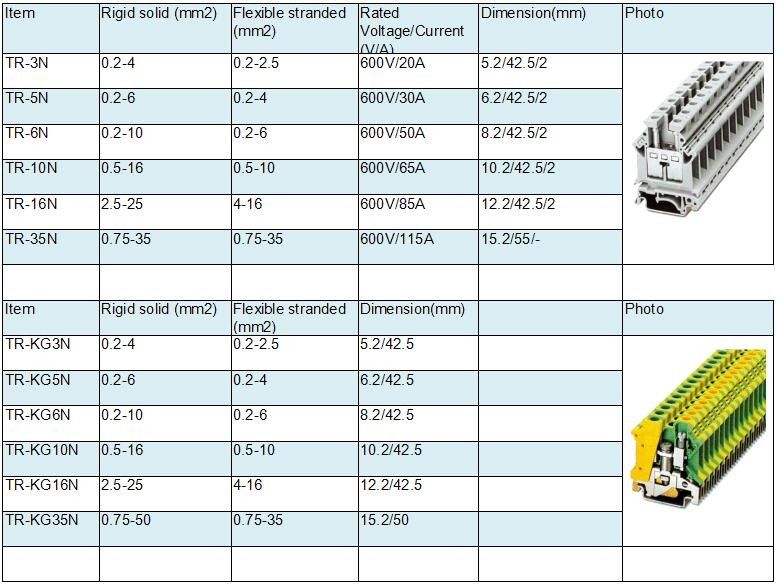

Item | Rigid solid (mm2) | Flexible stranded (mm2) | Rated Voltage/Current (V/A) | Dimension(mm) |
TR-3N | 0.2-4 | 0.2-2.5 | 600V/20A | 5.2/42.5/2 |
Parameter
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Drawing Specifications:
