14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Produk - Blok terminal arus tinggi
  • Menyoroti

    wiring terminal blocks

    ,

    power terminal block

  • Nada
    20.00mm
  • Polandia
    4 p
  • tegangan
    600V
  • Arus
    65A
  • Perumahan bahan
    PA66
  • Papan konduksi
    Cooper / Nikel Disepuh
  • Warna
    Hitam
  • Item
    Umpan melalui konektor terminal, terminal arus tinggi, blok terminal pemasangan panel
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE, CQC
  • Model Number
    TR60-05
  • Minimum Order Quantity
    200
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

  • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
  • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
  • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
  • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
  • 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
Dapatkan Harga Hubungi sekarang

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector





Data spec.



UL Technical Data B C D
Rated Voltage / Current V/A 600/65 600/65
Wire Range AWG 3-20 3-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 76 1000 / 76 1000 / 76
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board Plating Cooper/Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 14-16
Screw / Torque / lbf.in M 5 / 14 - 18





Drawing Specifications:







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:





14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 0



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

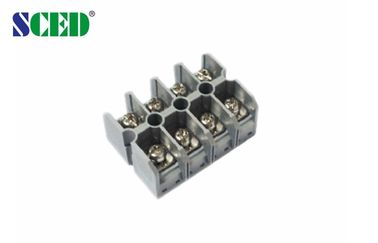

Drawing Photo

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 1

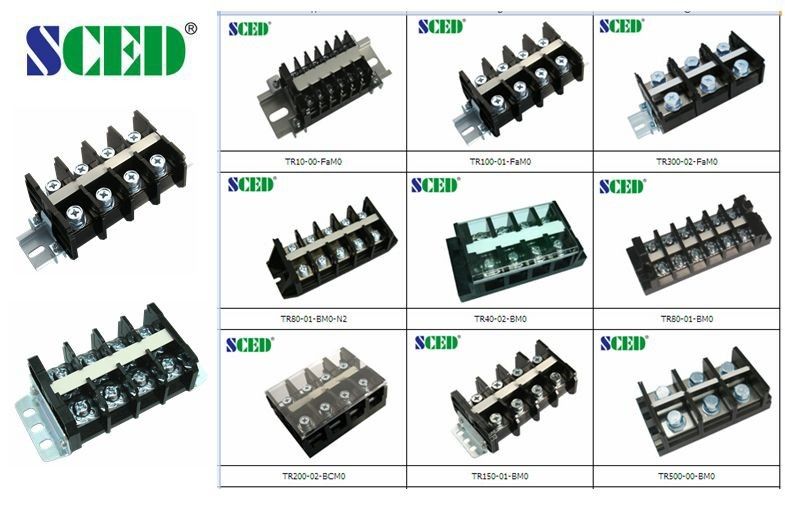

Factory Photo:



14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 2

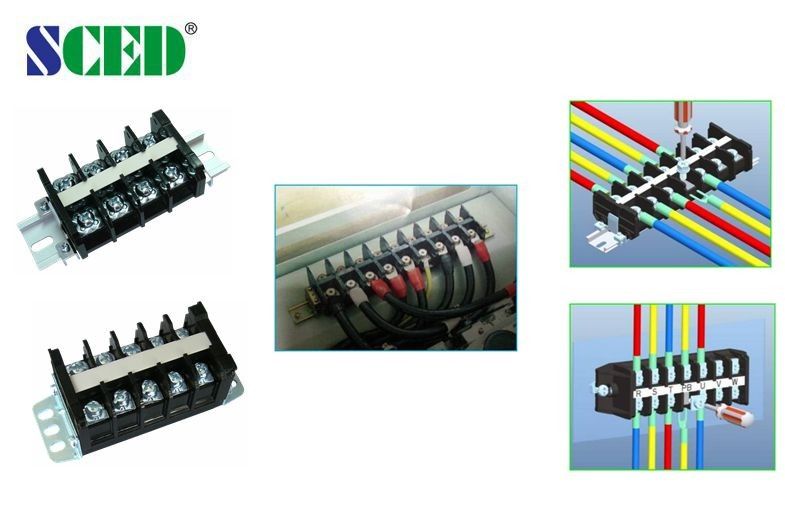

Certificates photo:

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 3

Tag:

wiring terminal blocks

pcb wire terminals

power terminal block
