Tempat asal: | Guanfdong,China |
Nama merek: | SCED |
Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
Nomor model: | TJ508-07 |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.04-0.085 PER Pole |
Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Waktu pengiriman: | 5-20 working days |
Syarat-syarat pembayaran: | T/T, L/C |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Warna: | Hijau | Bagian Logam: | Kuningan |
---|---|---|---|
Melempar: | 5.08mm | Voltase: | 300V |
Saat ini: | 10A | Polandia: | 2-24 tiang |
Saluran masuk kawat: | Sudut kanan | Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit |
Kelas Inflammability: | UL94, V-0 | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
Cahaya Tinggi: | pcb terminal block connectors,pcb mount terminal block |

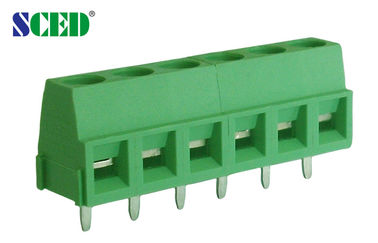

Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14-30 AWG
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
It can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military etc..

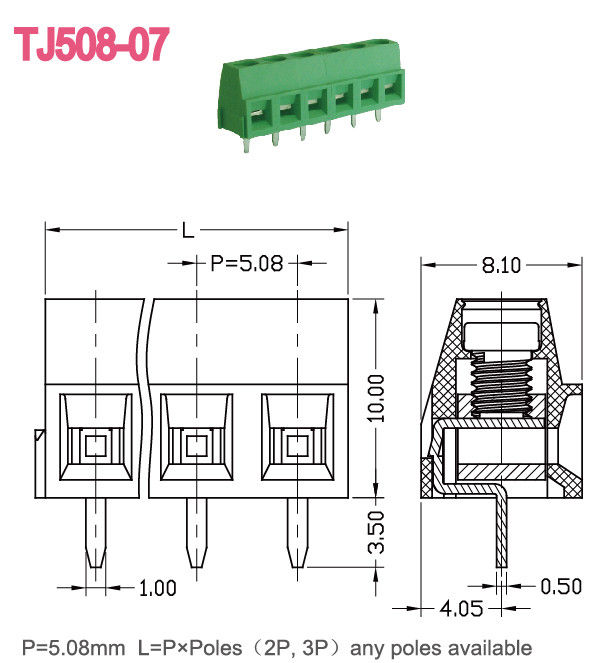

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 | 300/10 | |
Wire Range AWG | 12-26 | 12-26 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.4 | ||
Stripping Length mm | 6-7 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Competitive Advantage:
