| Tempat asal: | Guangdong China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
| Nomor model: | TJ508-06 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.04-0.09 per Pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm |
| Waktu pengiriman: | 5-20 working days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Melempar: | 6.35mm | Kelas Inflammability: | UL94-V0 |
|---|---|---|---|
| Bahan Isolasi: | PA66 | Bagian Logam: | Kuningan |
| Voltase: | 300V | Saat ini: | 30A |
| Warna: | Hijau | Polandia: | 2-24 tiang |
| Saluran masuk kawat: | Sudut kanan | Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit |
| Cahaya Tinggi: | pcb screw terminal blocks,pcb mount terminal block |
||

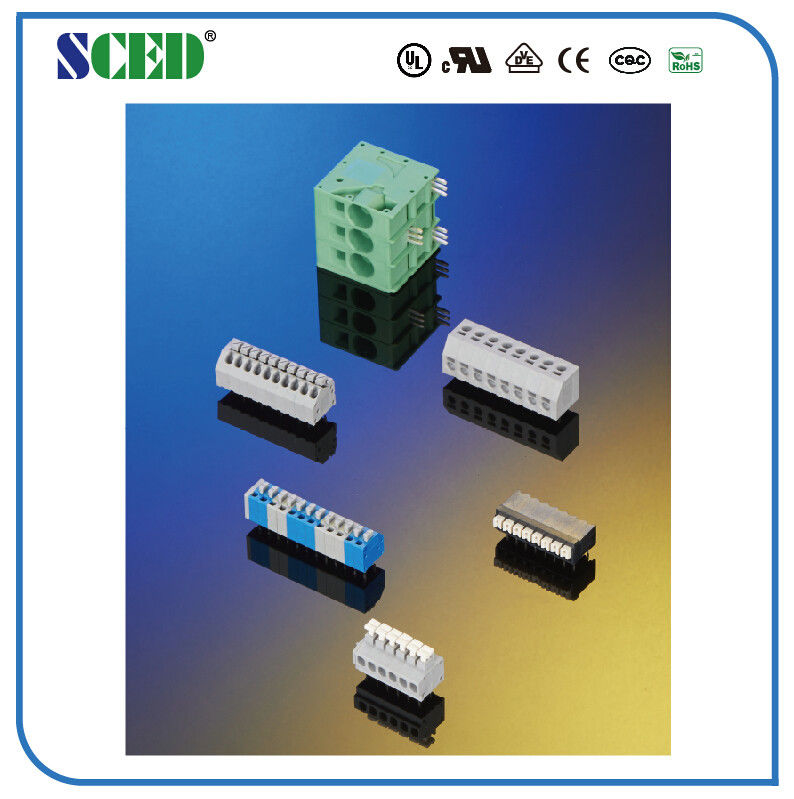

Pluggable 6.35mm PCB Terminal Blocks 300A Euro Type Raising Series
Detailed product Description:
Pitch 6.35mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
They can be used in a lot of industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 10 | 300 / 10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 32 | 320 / 32 | 630 / 32 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 4.0 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.5 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
