| Tempat asal: | Guangdong,China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CUL,CE,CQC and VDE etc. |
| Nomor model: | TJ500-18-T1 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.038-0.08 |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 working days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Warna: | Hijau | Melempar: | 5.0mm |
|---|---|---|---|
| Saat ini: | 10A | Voltase: | 300V |
| Plastik: | PA66 | Bagian Logam: | Kuningan |
| Kelas Inflammability: | UL94, V-0 | Tegangan Lonjakan Terukur: | Tidak ada kelainan dalam 1 menit |
| Resistansi Isolasi: | Di atas DC500V, 500MΩ | Resistensi Kontak: | Kurang dari 8mΩ |
| Cahaya Tinggi: | pcb terminal block connectors,pcb mount terminal block |
||

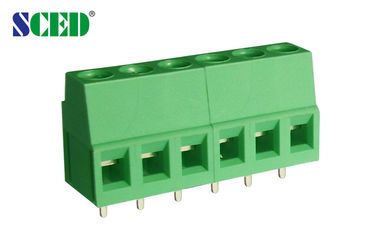

5.0mm PCB Terminal Block 10A Green PA66 Brass 300V 2-28 Poles
Detailed product Description:
Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Communication, Electric Power, Security, Medicine Equipment etc.

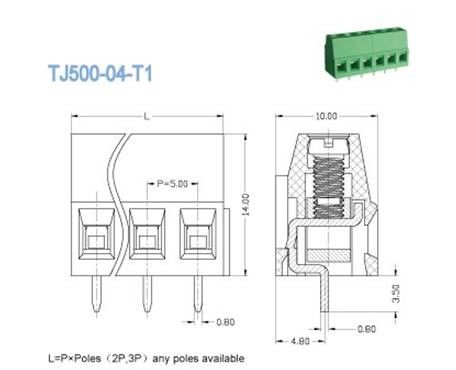

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
12-26 |
|
12-26 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
Stripping Length mm |
6-7 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
