| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR20-00-2P |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Type: | Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block | Pitch: | 9.50mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 24-12 |
| Rated Voltage: | 300V | Rated Current: | 20A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| Cahaya Tinggi: | panel mount terminal block connector,pcb mount terminal blocks |
||

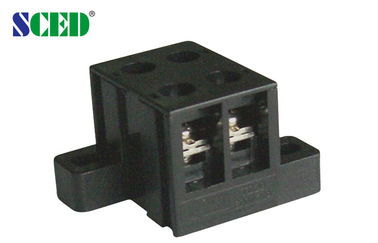

9.50mm Screw barrier Terminal 2 Poles Electrical Panel Mount Terminal Block 300V 20A

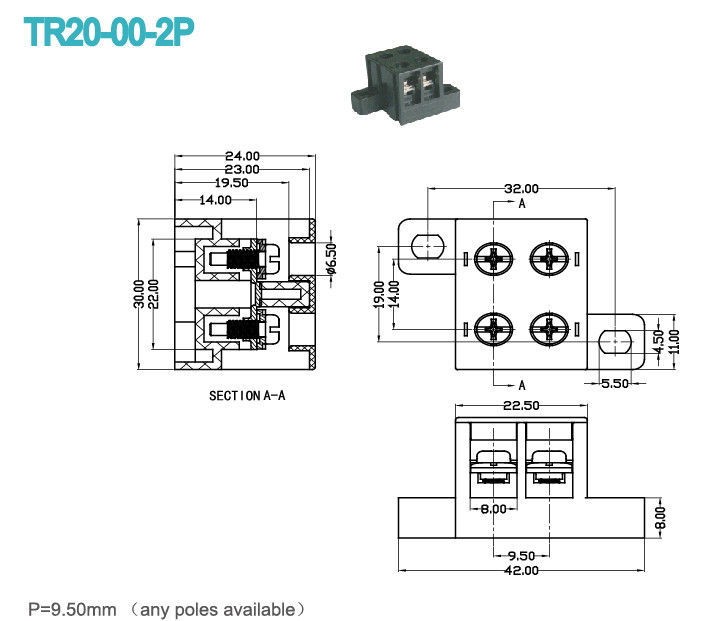

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 20 |
300 / 20 |
|
|
Wire Range AWG |
24-12 |
24-12 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
500 /20 |
800 / 20 |
1000 / 20 |
|
Rated Surge Voltage KV |
6 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
3.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Conduction Board/ Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
8-9 |
||
|
Screw Torque mm |
M3.5 / 7-10 |
||
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Barrier Type Electrical Panel Mount Terminal Block 9.50mm 300V 20A Single Level
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Competitive Advantage:
Factory Photo
Application:
