| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TB762-00-CMn |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Polandia: | 2-22 Polandia | Nada: | 7.62mm |
|---|---|---|---|
| Tegangan pengenal: | 300V | Nilai saat ini: | 15A |
| Dinilai Menghubungkan: | 2.5mm² | Warna: | Hitam |
| Cahaya Tinggi: | electrical terminal block,barrier type terminal block |
||
2-22 Poles Electric Barrier Terminal Block Connector 300 Volt
Quick Details:
1. PCB BarrierTerninal Blocks is widely used in automation, frequency conversion, communication, power supply and etc.
1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
2. With or without cover, one or two rows, from one level to three levels, etc.
3. Materials: Plastic housing is PBT(UL94 V-0)
4. Operating temperature: -40℃~+120℃
5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel

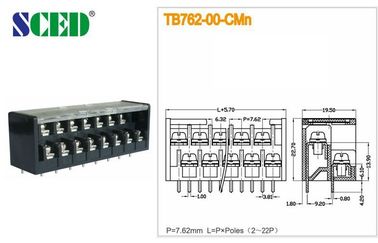

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Tag:
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.

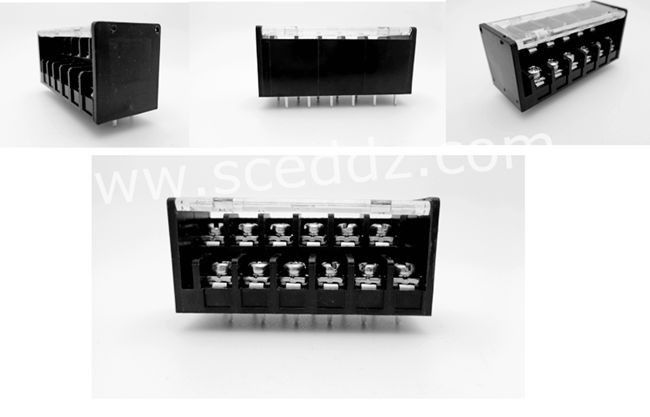

Drawing photos:
Packing photos
