10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks

10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks

Produk - Panel Mount Terminal Block
  • Menyoroti

    panel mount terminal block connector

    ,

    pcb mount terminal blocks

  • Tipe
    Blok Terminal Pemasangan Panel, Blok terminal penghalang, Blok terminal daya, Blok terminal listrik
  • Nada
    10.00mm
  • Nomor kontak
    2P-16P
  • Berbagai Wire
    12-28
  • Tegangan pengenal
    600V
  • Populer saat ini
    20A
  • Warna
    abu-abu
  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TR-3N-01
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

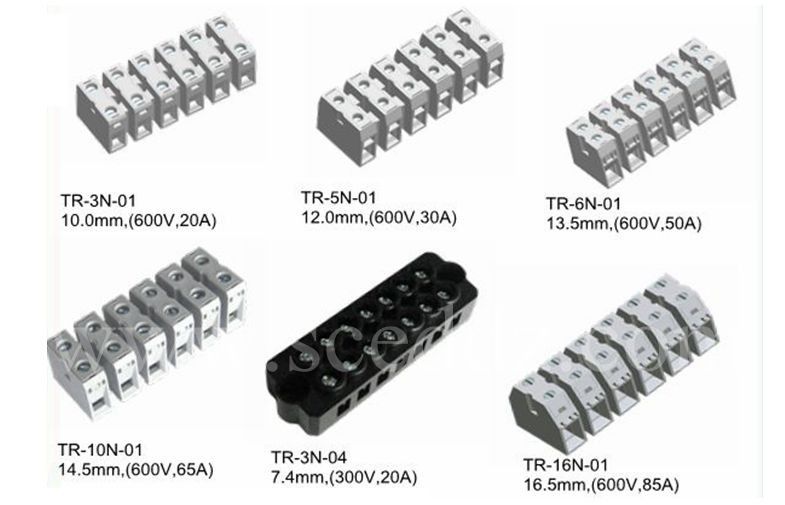

10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks

  • 10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks
  • 10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks
  • 10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks
Dapatkan Harga Hubungi sekarang

10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks



Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Details:


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:
10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks 0


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 20

600 / 20



Wire Range                               AWG

12-28

12-28



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 32

1000 / 32

1000 / 32

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PL/ UL94, V-0

Conduction Board Plating

Cooper/Nickel Plated

Clamp Cage Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

5-6

Screw / Torque                    / lbf.in

M 3 / 4.4-5.3




10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
