| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TJ381-15 |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Mengetik: | Blok Terminal Pegas Tanpa Sekrup | Nada: | 3,50mm |
|---|---|---|---|
| Nomor kontak: | 2P-28P | Berbagai Wire: | 14-26 (sol) 16-26 (str) |
| Tegangan pengenal: | 300V | Populer saat ini: | 5A |
| Warna: | Abu-abu & biru | Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri |
| Cahaya Tinggi: | screwless terminal block connector,spring terminal block connector |
||

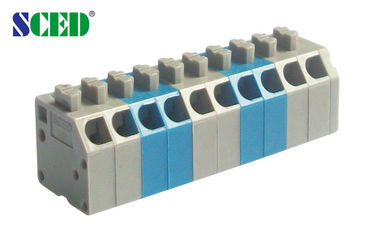

2p - 28p 3.50mm Spring Clamp Terminal Block For Frequency Converters
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory
Applications:
PCB, Frequency Converters, Server Site,
Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation,
Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
14-26(sol) 16-26(str) |
|
14-26(sol) 16-26(str) |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
125 / 10 |
250 / 10 |
320 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring / Plating |
Stainless Steel / - |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2 |
||
|
Stripping Length mm |
8-9 |
||
Competitive Advantage:

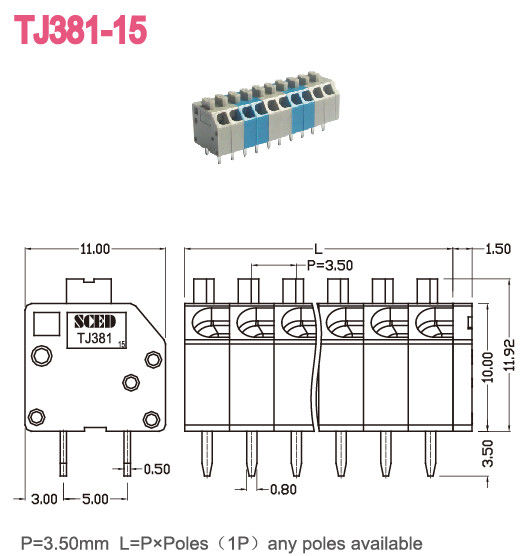

Drawing Photo
