6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates

Produk - Blok Terminal PCB
  • Menyoroti

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Plastic Material
    PA66, PBT, PC
  • Metal Material
    Copper, Brass, Iron
  • Wire Range
    750kcmil - 32 AWG
  • Volt Range
    63V - 1000V
  • Current Range
    6A - 500A
  • Color
    Green, Black, Grey, etc.
  • Rated Surge Voltage
    No abnormal within 1 minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less than 8mΩ
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE, CQC, VDE
  • Model Number
    TJ381
  • Minimum Order Quantity
    500
  • Harga
    Get latest price USD 0.08 - 4.98 per pole
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    5 - 20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates

  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
  • 6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates
Dapatkan Harga Hubungi sekarang



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates



Descripition:

SCED professional in terminal blocks and we have 10 series, please select the right one for your market, and we will contact you soon. Below are more informations about our company and products' applications.



Certificates:

UL, CUL, CE, CQC, VDE, ISO9001, ISO14001, Patent, Honors, etc.

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 0



Company Informations:

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 1





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, below are some photos for review, etc..

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 2



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 3



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 4

6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 5



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



For each products, we have the drawing and spec. like below, it's very convenience to check and compare.



Parameter and Drawing Specifications:

ULTechnical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30

300 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

1000 / 32

1000 / 32

Rated Surge Voltage                 KV

6

8

6

Rated Connecting Capacity           mm2

4.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.9

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3

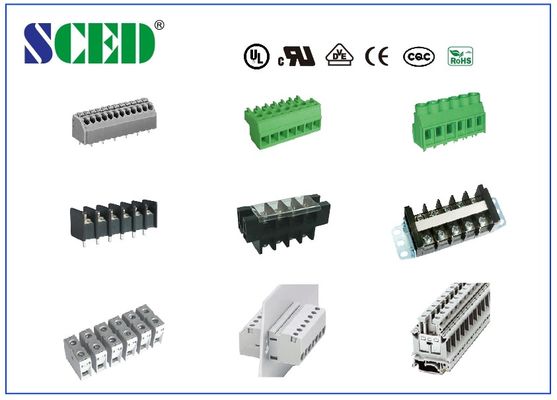

For each series, we also have the promote photo look like below, hope this will help customer to find the exactly products more quickly.



6A - 500A Full Range PCB Mount Terminal Block UL CUL VDE CQC CE Certificates 7
