PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A

PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A

Produk - Panel Mount Terminal Block
  • Menyoroti

    panel mount terminal block connector

    ,

    pcb mount terminal blocks

  • Tipe
    Blok Terminal Pemasangan Panel, Blok terminal penghalang, Blok terminal daya, Blok terminal listrik
  • Nada
    9.50mm
  • Nomor kontak
    2P-24P
  • Berbagai Wire
    24-12 awg
  • Tegangan pengenal
    600V
  • Populer saat ini
    20A
  • Warna
    Hitam
  • Aplikasi
    PCB, Konverter Frekuensi, Situs Server, Switch, Catu Daya, Penerangan Listrik, Kontrol Industri
  • Place of Origin
    Shenzhen, China
  • Nama merek
    SCED
  • Sertifikasi
    UL, CE
  • Model Number
    TR20-01-BM0
  • Minimum Order Quantity
    500
  • Harga
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

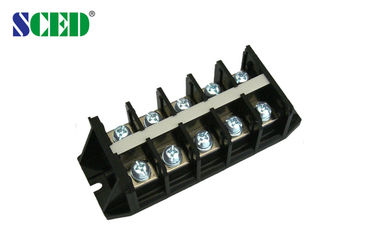

PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A

  • PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A
  • PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A
  • PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A
Dapatkan Harga Hubungi sekarang



PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A



Spec.


■Right angle wire inlet;
■Single Level;

Panel Mount on PCB Board


Tag: Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks



Applications:


PCB,

Frequency Converters,

Server Site, Switch,

Power Supply, etc..


Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 20

600 / 20



Wire Range                                AWG

24-12

24-12



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

800 /10

1000 / 20

1000 / 20

Rated Surge Voltage                      KV

8

8

8

Rated Connecting Capacity           mm2

2

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                mm

8-9

Screw Torque                    mm

M3.5 /7-10





Feature Advantage:



1. Combined to be different positions

2. Products can be mounted on PCB

3. Marked with different labels, assembled with or without protection cover, added with or without all sorts of flat jumpers.



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.


How to order:
PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A 0



Drawing:
PCB Panel Mounted Terminal Block 2P - 24P High Voltage 600V 20A 1
