| Tempat asal: | Guangdong China |
| Nama merek: | SCED |
| Sertifikasi: | CE,UL,CUL,CQC,VDE etc. |
| Nomor model: | TP508P-07 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Harga: | USD 0.024-0.068 |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 days |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Warna: | Hijau | Jenis: | Bagian wanita |
|---|---|---|---|
| Melempar: | 5.08mm | Saat ini: | 18A |
| Voltase: | 300V | Plastik: | PA66 |
| Kontaktor: | Kuningan | Tiang: | 2-20 tiang |
| Kelas Inflammability: | UL94, V-0 | Resistansi Isolasi: | Di atas DC500V, 500MΩ |
| Cahaya Tinggi: | pluggable terminal block connector,plug in terminal block |
||

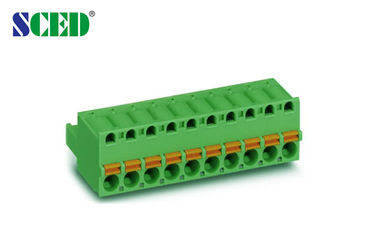

Brass Pluggable Terminal Block Pitch 5.08mm 300V 18A Plastic Housing
Detailed product Description:
Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06.
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/18 |
|
300/18 |
|
Wire Range AWG |
12-30 |
|
12-30 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
320 / 18 |
630 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Stainless Steel / - |
||
|
Contactor / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
10 |
||
Competitive Advantage:
