Tempat asal: | Guangdong,China |
Nama merek: | SCED |
Sertifikasi: | CE,UL,CUL,CQC,VDE etc. |
Nomor model: | TP-508H-77V |
Kuantitas min Order: | 500 Piece/Pieces |
---|---|
Harga: | USD 0.021-0.042 |
Kemasan rincian: | 5-20 days |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
Warna: | Hijau | Melempar: | 7.62mm |
---|---|---|---|
Jenis: | Bagian laki-laki | Saat ini: | 18A |
Voltase: | 300V | Tiang: | 2-16 tiang |
Kelas Inflammability: | UL94-V0 | Plastik: | PA66 |
Terminal: | Kuningan | pelapisan: | berlapis timah |
Cahaya Tinggi: | power distribution terminal block,power terminal block connector |

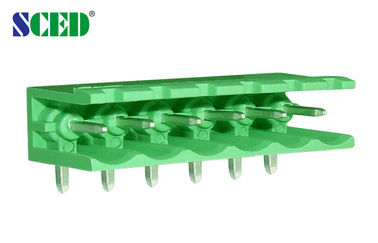

Green Plug In Terminal Block Pitch 7.62mm Brass Terminal PA66 300V
Detailed product Description:
Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B
|
C |
D |
Rated Voltage / Current V/A |
300/18 |
|
300/18 |
Wire Range AWG |
12-30 |
|
12-30 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
400 / 18 |
630 / 18 |
1000 / 18 |
Rated Surge Voltage KV |
6 |
6 |
6 |
Rated Connecting Capacity mm2 |
2.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Steel / Nickel Plated |
||
Contactor / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
10 |
||
Screw / Torque / lbf.in |
M2.5 / 3-3.5 |
Competitive Advantage:
