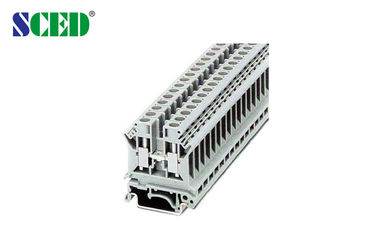

UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail
-
Menyoroti
rail mount terminal block
,grounding terminal block
-
Saat ini50A
-
Voltase600V
-
Saluran Masuk KawatSudut kanan
-
WarnaAbu-abu
-
Lebar Terminal8.2mm
-
Resistensi KontakKurang dari 8mΩ
-
Tegangan Lonjakan TerukurTidak ada kelainan dalam 1 menit
-
Kelas InflammabilityUL94, V-0
-
Resistansi IsolasiDi atas DC500V, 500MΩ
-
BautM3
-
Place of OriginGuangdong China
-
Nama merekSCED
-
SertifikasiUL,CUL,CE, CQC,VDE etc.
-
Model NumberTR-6N
-
Minimum Order Quantity500 Piece/Pieces
-
HargaUSD 0.169-0.338 Per Pole
-
Packaging DetailsStandard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
-
Delivery Time5-20 days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
UK Rail Mounted Terminal Blocks 600V 50A Terminal Width 8.2mm Din Rail
UK Rail Mounted Terminal Blocks 600V 50A Terminal Width: 8.2mm Din Rail
Detailed product Description:
Terminal width: 8.2mm, 600V 50A, AWG:26-8, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Grey |
TR-6N |
|
|
D-TR-3/16 |
|
|
FBI 10-8 Imax: 57A |
|
|
EB 10-8 Imax: 57A |
|
|
TS-K |
|
|
ATP-TR |
|
Zack Strip White |
ZB8 |
|
Screwdriver |
SZS 1.0×4.0 |
|
Rail Material |
aluminum |
|
Dimensions mm |
8.2/42.5/2 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Stripping Length mm |
10 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
57 / 10 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ |
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand.
