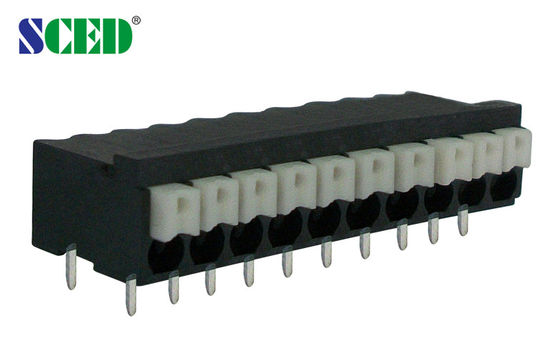

10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0

10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0

    • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
    • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
    • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
  • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0

    Detail produk:

    Place of Origin: Guangdong, China
    Nama merek: SCED
    Sertifikasi: CE,UL,CUL,CQC and VDE etc.
    Model Number: TJ381-12V

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1000 Piece/Pieces
    Harga: USD 0.051-0.120 Per Pole
    Packaging Details: 1000000 Pole/Poles per Month
    Delivery Time: 5-20 Working days
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Nada: 3.5mm Bahan Isolasi: LCP
    Arus: 10A tegangan: 300V
    Polandia: 2-24 tiang Terminal: Fosfor perunggu
    Resistansi isolasi: Di atas DC500V, 500MΩ Hubungi perlawanan: Kurang dari 8mΩ
    Kelas Peradangan: UL94, V-0 Dinilai Tegangan Surge: Tidak ada yang abnormal dalam 1 menit

    10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0



    Detailed product Description:



    Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, Screwless terminals

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Deck; □Double decks; □Triple decks

    Standard color: Grey.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0



    Applications:



    Normally our products can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control.

    Besides, they can be also used in Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

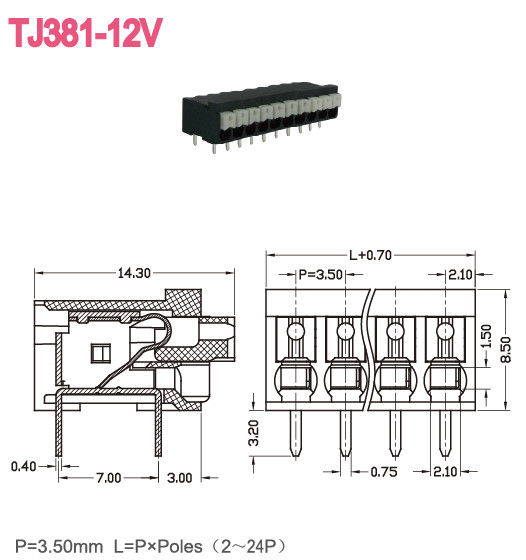

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10
    Wire Range AWG 16-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 10 250 / 10 400 / 10
    Rated Surge Voltage KV 2.5 2.5 2.5
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class LCP / UL94, V-0
    Spring / Plating Stainless Steel / -
    Terminal / Plating Phosphor Bronze / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.1
    Stripping Length mm 8-9



    Competitive Advantage:



    We have more than 13 years of expreience in designing, manufacturing and marketing terminal blocks. 10 main series and more than 1000 series for selection. Stable high quality and competitive price. Products have UL, CE, CUL, CQC and VDE etc.



    10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
