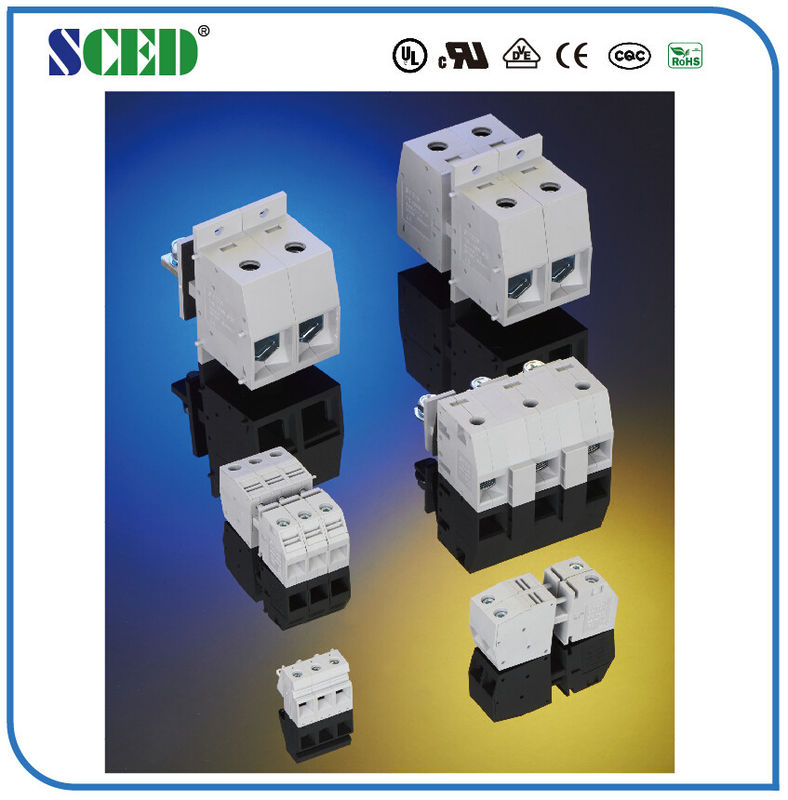

85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector

85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector

    • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
    • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
    • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
  • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector

    Detail produk:

    Place of Origin: Guangdong,China
    Nama merek: SCED
    Sertifikasi: UL,CUL,CE,CQC and VDE etc.
    Model Number: TR-16N-03

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500 Piece/Pieces
    Harga: USD 0.65-1.22/Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Lebar Terminal: 12,1 mm Plastik: PA66
    Arus: 85A tegangan: 600V
    Dewan Konduksi: tembaga Plating: Dilapisi timah
    Sekrup: baja Hubungi perlawanan: Kurang dari 8mΩ
    Berbagai Wire: 4-20 AWG Stripping Length: 16mm

    85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector





    Detailed product Description:



    Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks



    Standard color: Black. Other colors also available.



    Applications:

    1.They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting,



    2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current               V/A

    600 / 85



    600 / 5

    Wire Range                                 AWG

    4-20



    4-20

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    630 / 101

    800 / 101

    1000 / 101

    Rated Surge Voltage                       KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    16

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Steel / Nickel Plated

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                                 mm

    16

    Screw / Torque                                / lbf.in

    M5 / 22-25



    ompetitive Advantage:



    1. good quality
    2. reasonable price
    3. good after-sales service
    4. full range products for selection
    5. Flexible to design the exact part per customers’ demand

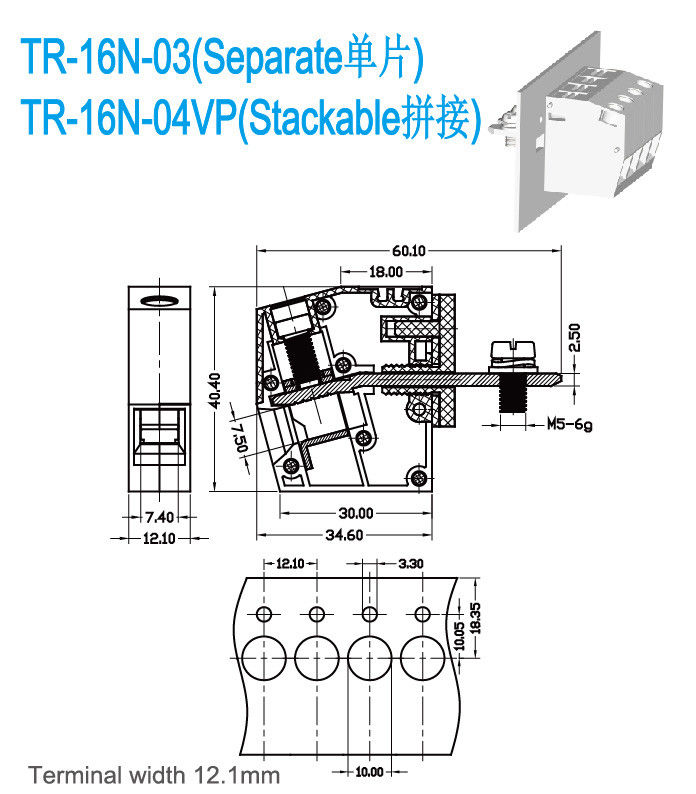

    Drawing Photo:



    85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector



    85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
