| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR300-01-BM0 |
| Kuantitas min Order: | 300pcs |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 500K poles each monthly |
| Nada: | 45mm | Tegangan pengenal: | 600V |
|---|---|---|---|
| Populer saat ini: | 300A | warna: | Hitam |
| Nomor kontak: | Setiap tiang yang tersedia | Berbagai Wire: | 4-350kcmil |
| Aplikasi: | PCB, Konverter Frekuensi, Situs Server, Switch, dll. | Mengetik: | Blok terminal arus tinggi |
| Cahaya Tinggi: | pcb wire terminals,wiring terminal blocks |
||

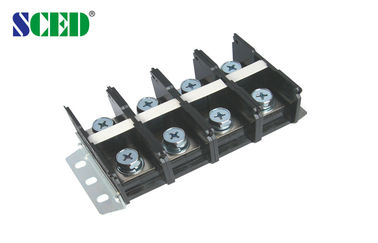

300A 600V High Current Terminal Connector 45mm Screw Mount Terminal Block
■Single Level; □Double levels; □Triple levels
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 300 |
600 / 300 |
|
|
Wire Range AWG |
4-350kcmil |
4-350kcmil |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 300 |
1000 / 300 |
1000 / 300 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
150 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
19-21 |
||
|
Screw / Torque / lbf.in |
M10 / 50-60 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response

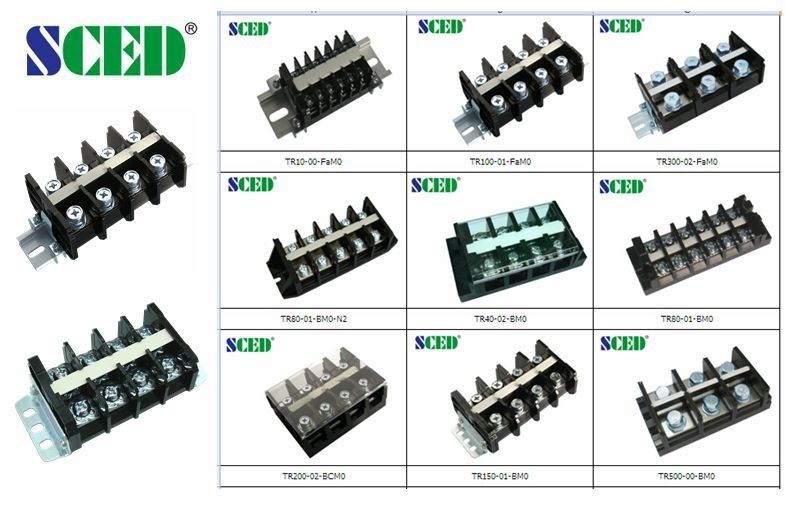

4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing Photo:
How to order:
