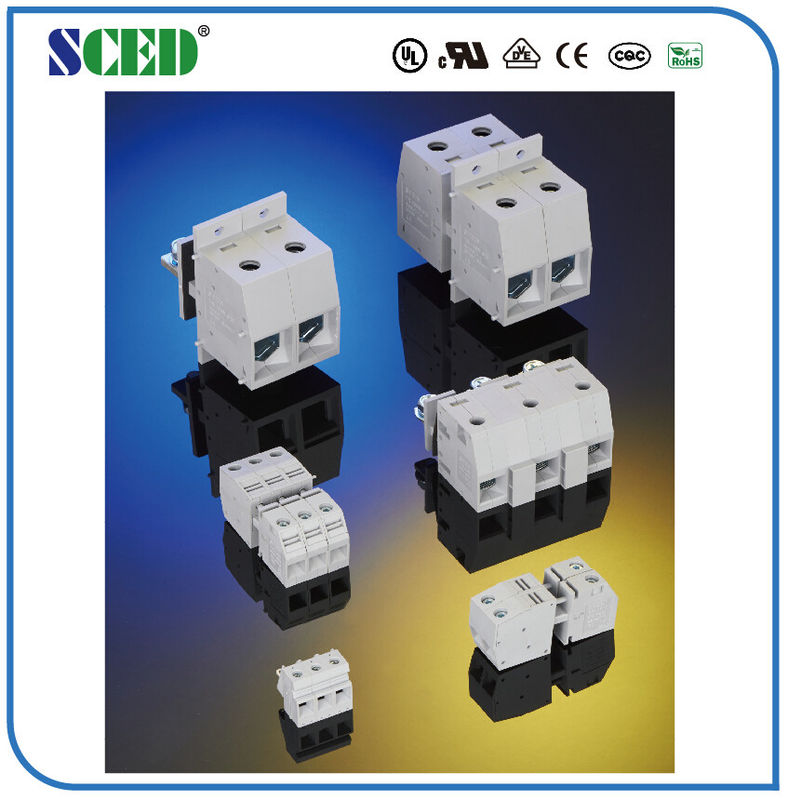

600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey

600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey

    • 600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey
    • 600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey
    • 600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey
  • 600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey

    Detail produk:

    Place of Origin: Guangdong,China
    Nama merek: SCED
    Sertifikasi: UL.CE,CUL,VDE,CQC etc.
    Model Number: TR-10N-06

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500 PCS
    Harga: USD 0.338-0.542 per pole
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Pitch: 10.10mm Current: 600V
    Voltage: 65A Rated Surge Voltage: No abnormal within 1 minute
    Inflammability Class: UL94, V-0 Contact Resistance: Less than 8mΩ
    Insulation Resistance: Above DC500V, 500MΩ

    600V 65Amp Connector Feed Through Terminal Blocks Grey 10.10mm Auto Electrical Terminal​



    Detailed product Description:

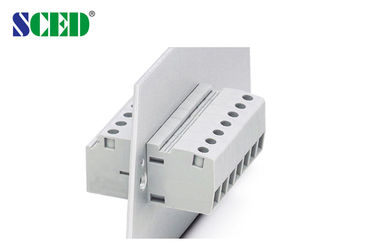

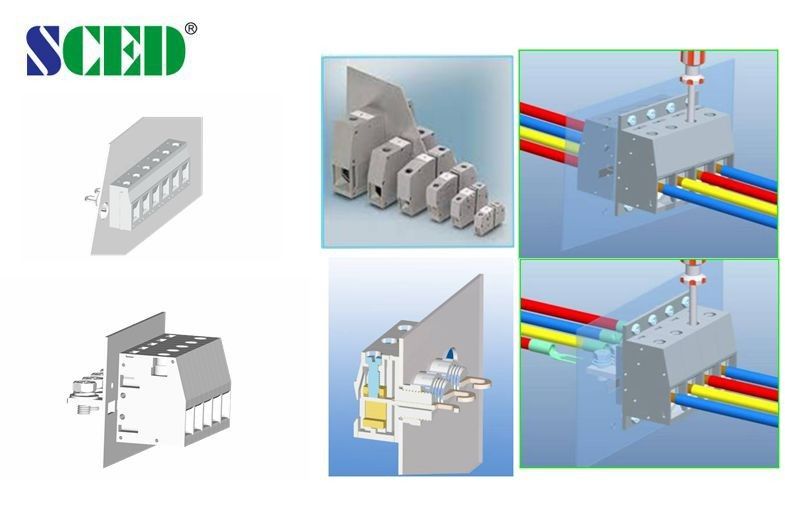

    Pitch 10.1mm, 600V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 65



    600 / 5

    Wire Range                               AWG

    6-24



    6-24

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    630 / 76

    800 / 76

    1000 / 76

    Rated Surge Voltage                     KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    10

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    11

    Screw / Torque                    / lbf.in

    M4 / 10.6-13



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    600V 65Amp Connector Feed Through Terminal Blocks 10.10mm Auto Electrical Terminal Grey
