| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE, CQC |
| Nomor model: | TR200-02-BCM0 |
| Kuantitas min Order: | 500 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 1KK poles each monthly |
| Nada: | 31.00mm | Polandia: | Setiap tiang yang tersedia |
|---|---|---|---|
| Tegangan pengenal: | 600V | Populer saat ini: | 200A |
| Bahan Isolasi: | PC | Kelas Peradangan: | UL94, V-0 |
| warna: | Hitam | Sekrup: | M8 / Baja / Seng Berlapis |
| Cahaya Tinggi: | pcb wire terminals,wiring terminal blocks |
||

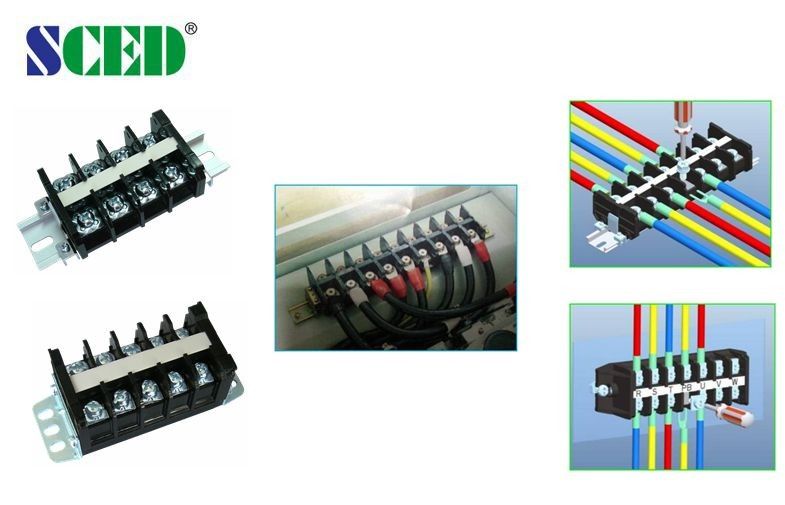

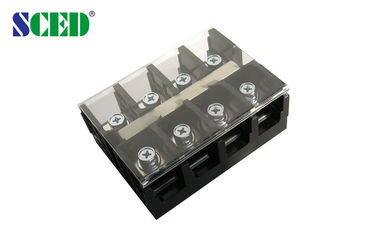

High Current Terminal Connector Block Electrical connectors 600V 200amp connector
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 200 | 600 / 200 | |
| Wire Range AWG | 4/0-20 | 4/0-20 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /200 | 1000 / 200 | 1000 / 200 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 80 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 14-18 | ||
| Screw Torque mm | M8 / 31-40 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
