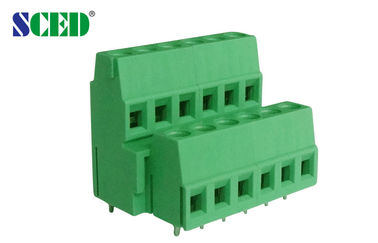

Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector

Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector

    • Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector
    • Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector
  • Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector

    Detail produk:

    Place of Origin: Shenzhen, China
    Nama merek: SCED
    Sertifikasi: UL, CE
    Model Number: TJ508-22

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 500
    Harga: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Hubungi sekarang
    Detil Deskripsi produk
    Pitch: 5.08mm Material: PA66
    Terminal: Brass steel Color: Green
    Poles: 2p 3p any poles available Samples: Available

    Double Levels Spring Cage Clamp Terminal Block 300V Green PA66 Connector



    Parameter and Drawing Specifications:



    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10   300/10
    Wire Range AWG 12-26   12-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
    Rated Surge Voltage KV 4 4 4
    Rated Connecting Capacity mm2 2.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Clamp Cage / Plating Brass / Nickel Plated
    Terminal / Plating Brass / Tin Plated
    Screw / Plating Steel / Zinc Plated
    Other Data
    PCB Hole Diameter mm φ1.4
    Stripping Length mm 6-7
    Screw / Torque / lbf.in M3 / 4.4-5.3







    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:



    Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

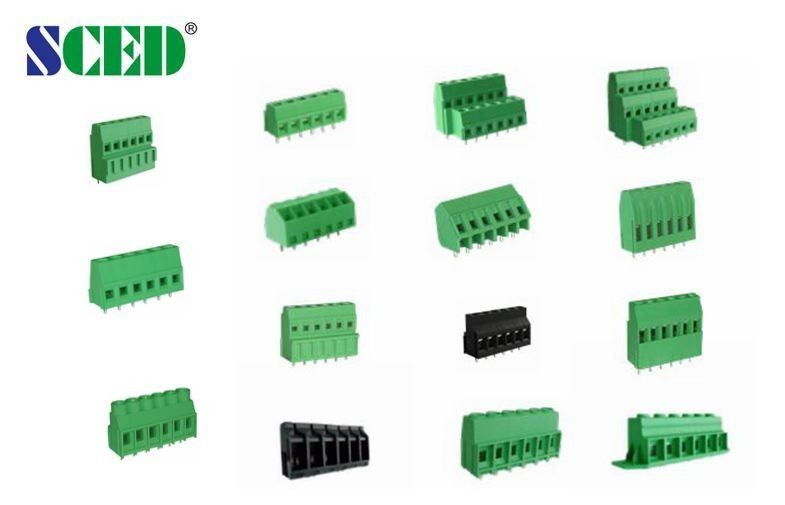

    Photo Drawing

    Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector



    Photo Application

    Double Levels Spring Cage Clamp PCB Terminal Block 300V PA66 Stackable Connector
