| Tempat asal: | China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
| Nomor model: | SCED |
| Kuantitas min Order: | 1000 Piece/Pieces |
|---|---|
| Harga: | USD 0.015-0.032 Per Pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Warna: | Hijau | Melempar: | 5.08mm |
|---|---|---|---|
| Polandia: | 2-22 kutub | Voltase: | 300V |
| Saat ini: | 18A | Bahan Isolasi: | PA66 |
| Terminal: | Kuningan | Kelas Inflammability: | UL94-V0 |
| Resistansi Isolasi: | Di atas DC500V, 500MΩ | Resistensi Kontak: | Kurang dari 8mΩ |
| Cahaya Tinggi: | power terminal block connector,electric terminal block |
||

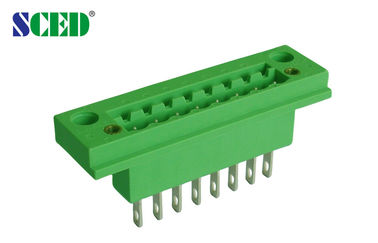

Male Header Plug In Terminal Block with Flange 5.08mm 18A Sockets Green PA66 2-22 Poles
Detailed product Description:
Header, Male Sockets, Through Panel Design, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

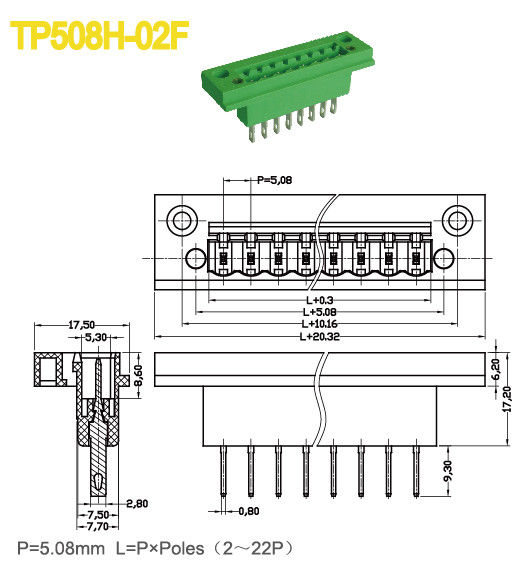

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 18 | ||
| Wire Range AWG | |||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| PinDimension mm | 1.0 x 1.0 | ||
Competitive Advantage:
