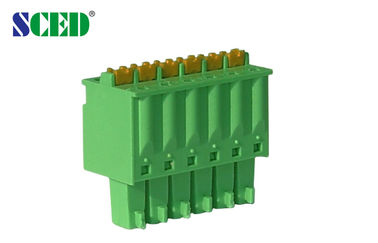

Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0

Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0

    • Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0
    • Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0
  • Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0

    Detail produk:

    Place of Origin: China
    Nama merek: SCED
    Sertifikasi: UL,CE,CUL,CQC,VDE etc.
    Model Number: TP381P-23

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1000 Piece/Pieces
    Harga: USD 0.05 -0.12 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Hubungi sekarang
    Detil Deskripsi produk
    Nada: 3.81mm Berbagai Wire: 16-30 AWG
    Polandia: 2-22 tiang Arus: 8A
    tegangan: 300V Bahan Isolasi: PA66
    Kelas Inflamabilitas: UL94-V0 Stripping Length: 9-10mm
    Resistansi isolasi: di atas DC500V, 500MΩ Hubungi perlawanan: Kurang dari 8mΩ

    Spacing 3.5mm Pluggable Terminal Block Female Green 2-22 Positions 300V/8A UL94-V0



    Detailed product Description:



    Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    ■Single Level; □Double Levels; □Triple Levels



    This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V.



    Standard color: Green.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:

    Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

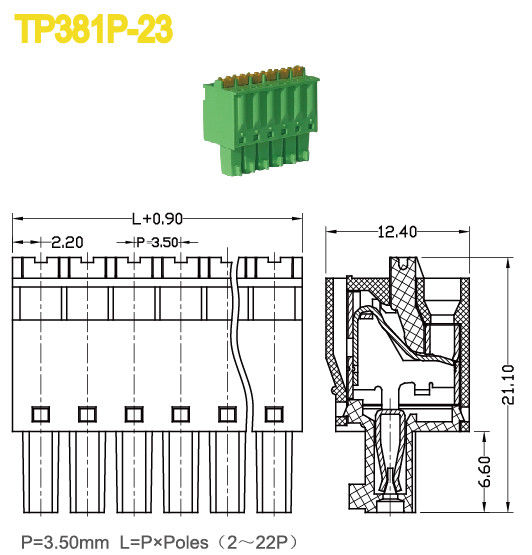

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300 / 8
    Wire Range AWG 16-30
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
    Rated Surge Voltage KV 2.5 2.5 2.5
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Spring Clamp Stainless Steel
    Terminal / Plating Phosphor Bronze / Tin Plated
    Other Data
    Stripping Length mm 9-10



    Competitive Advantage:



    1. More than 13 years of experience
    2. 10 main series and more than 1000 models
    3. OEM and ODM service
    4. High stable quality and competitive price
    5. Quick response and good service

    Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V/8A UL94-V0
