| Tempat asal: | China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CE,CUL,CQC and VDE etc. |
| Nomor model: | TJ952-03-A1 |
| Kuantitas min Order: | 1000 Piece/Pieces |
|---|---|
| Harga: | USD 0.139-0.275 Per Pole |
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 Working Days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Warna: | Hitam | Melempar: | 6.35mm |
|---|---|---|---|
| Saat ini: | 30A | Voltase: | 600V |
| Baut: | M3 | Pengupasan Panjang: | 7-8mm |
| Torsi: | 4.4-5.3 lbf.in | Jangkauan Kawat: | 10-22 AWG |
| Bahan Isolasi: | PA66 | Kelas Inflammability: | UL94-V0 |
| Cahaya Tinggi: | screw type terminal block,screw connection terminal block |
||

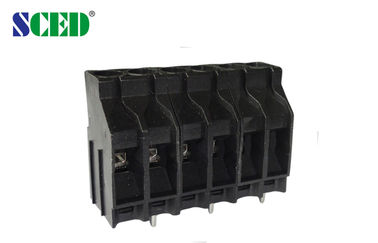

Black PCB Screw Terminal Block 6.35mm Pitch 30A UL94-V0 30A 10-22 AWG
Detailed product Description:
Pitch 6.35mm, 600V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

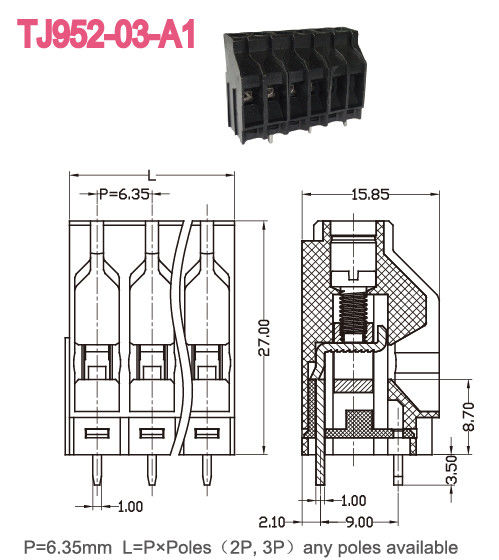

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | |
| Wire Range AWG | 10-22 | 10-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 / 32 | 1000 / 32 | 1000 / 32 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 4.0 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.6 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
