Double Levels Barrier Terminal Block 8.70mm Black Screw Mount Connector

Double Levels Barrier Terminal Block 8.70mm Black Screw Mount Connector

  • Double Levels Barrier Terminal Block 8.70mm Black Screw Mount Connector
  • Double Levels Barrier Terminal Block 8.70mm Black Screw Mount Connector
Double Levels Barrier Terminal Block 8.70mm Black Screw Mount Connector
Detail produk:
Tempat asal: Guangdong, China
Nama merek: SCED
Sertifikasi: CE,UL,CUL,VDE,CQC etc.
Nomor model: TB870-00
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1000 Piece/Pieces
Harga: USD 0.03-0.15/ Pole
Kemasan rincian: Standard Master Carton Dimension: 341 x 273 x 198
Waktu pengiriman: 5-20 Working Days
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 1000000 Pole/Poles per Month
Kontak
Detil Deskripsi produk
Sekrup: M3 Tingkat: Tingkat ganda
Bahan: PBT Nada: 8.70mm
tegangan: 250V Arus: 15A
Torsi: 7-10 lbf.in Kata kunci: Konektor penjepit sekrup
Cahaya Tinggi:

electrical terminal block

,

barrier type terminal block

Double Levels Barrier Terminal Connection Block 8.70mm Black Screw Mount Connector



Detailed product Description:



Pitch 8.70mm, 250V 15A, 2*2P-14*2P, Barrier Terminal Blocks, Power Terminal Blocks

■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□ Single Level;  ■Double levels;  □Triple levels

Standard color: Black. Other colors also available.

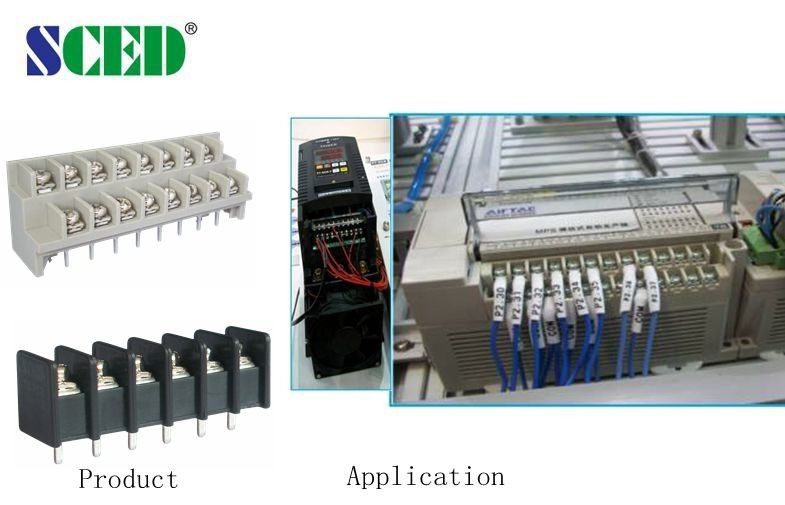

Applications:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply

2. Electric Lighting, Industry Control, Automation, Rail Transportation

3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current                V/A

250 / 15



250 / 10

Wire Range                                  AWG

14-26



14-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                V/A

320 / 24

400 / 24

630 / 24

Rated Surge Voltage                     KV

5

5

5

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.6

Stripping Length                      mm

7-8

Screw / Torque                     / lbf.in

M 3.5 / 7-10



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. OEM and ODM service
  6. Good after-sales service
