Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nada: | 32.00mm | Tegangan pengenal: | 600V |
|---|---|---|---|
| Populer saat ini: | 175A | Polandia: | Setiap tiang yang tersedia |
| warna: | Hitam | Mengetik: | Konektor Terminal Arus Tinggi |
| Cahaya Tinggi: | pcb wire terminals,wiring terminal blocks |
||

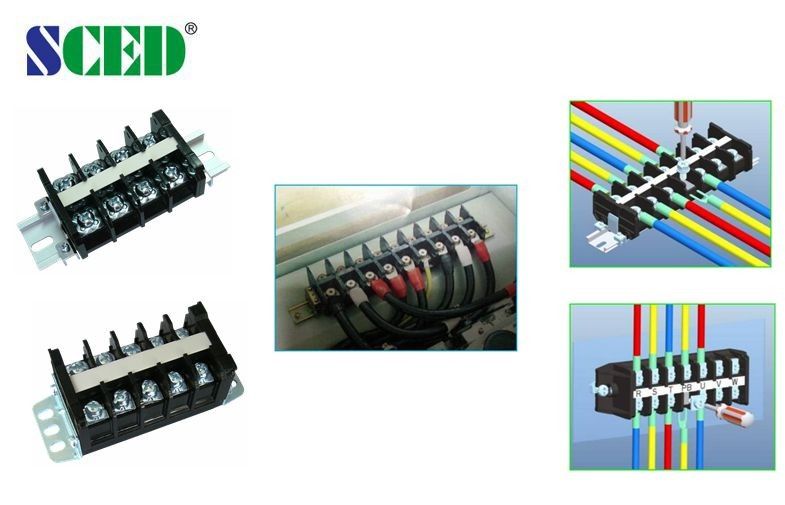

High Current Terminal Connector Block 32.00mm 175A Black Screw Mount Connection
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 175 | 600 / 175 | |
| Wire Range AWG | 3/0-20 | 3/0-20 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 /175 | 1000 / 175 | 1000 / 175 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 80 | ||
| Material | |||
| Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
| Conduction Board/ Plating | Brass /Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 14-18 | ||
| Screw Torque mm | M8 / 31-40 | ||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
