| Tempat asal: | Shenzhen, China |
| Nama merek: | SCED |
| Sertifikasi: | UL, CE |
| Nomor model: | TR-95N-03F |
| Kuantitas min Order: | 200 |
|---|---|
| Harga: | Get latest price |
| Kemasan rincian: | Standard Export Carton |
| Waktu pengiriman: | 7-20 working days |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 100K poles each monthly |
| Warna: | abu-abu | Nomor kontak: | 1P-24P |
|---|---|---|---|
| Nada: | 25.00mm | Populer saat ini: | 230A |
| Tegangan pengenal: | 600V | Mengetik: | Melalui Blok Terminal Panel, Melalui blok terminal Dinding, konektor Sekat |
| Cahaya Tinggi: | wiring terminal block,feed through terminal blocks |
||

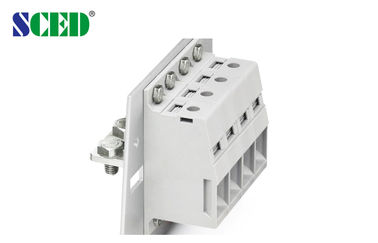

Bulkhead Connectors 600v Through Panel Terminal Blocks Connector 230A 25.0mm
How to order
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

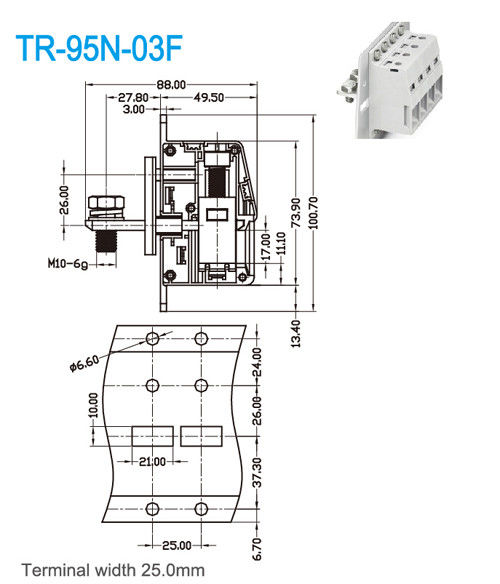

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 230 |
|
600 / 5 |
|
Wire Range AWG |
4-4/0 |
|
4-4/0 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
830 / 232 |
1000 / 232 |
1000 / 232 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
95 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
27 |
||
|
Screw / Torque / lbf.in |
M8 / 132-177 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
