Tempat asal: | Shenzhen, China |
Nama merek: | SCED |
Sertifikasi: | UL, CE |
Nomor model: | TP508H-10V-D8 |
Kuantitas min Order: | 500 |
---|---|
Harga: | Get latest price |
Kemasan rincian: | Standard Export Carton |
Waktu pengiriman: | 7-20 working days |
Syarat-syarat pembayaran: | T/T |
Menyediakan kemampuan: | 1KK poles each monthly |
Tipe: | Jenis PCB | Warna: | hijau |
---|---|---|---|
Item: | Jenis plug, tipe pria | Bahan: | PA66 |
Nada: | 5.08mm | Polandia: | 2-22 tiang |
Cahaya Tinggi: | power terminal block connector,electric terminal block |

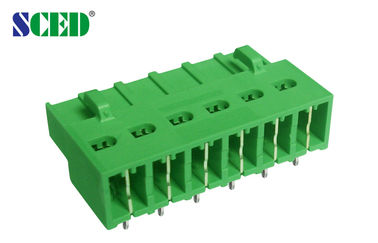

5.08mm Female Connector 300V Plug In Type Terminal Block Green Connector
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

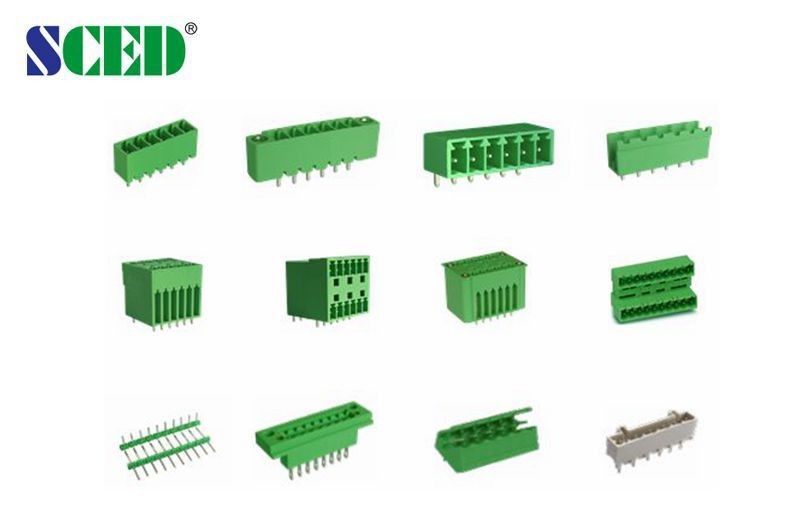

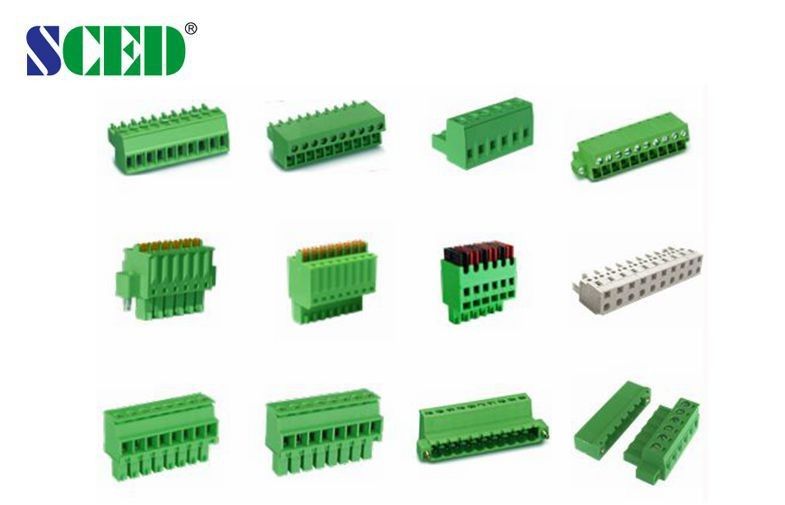

This male header match with female plugs’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/18 | 300/10 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Terminal / Plating | Copper / Tin Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.5 | ||
Pin Dimension mm | 0.4 x 1.1 |
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Tag:
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
