| Tempat asal: | Guangdong China |
| Nama merek: | SCED |
| Sertifikasi: | UL,CUL,CQC,VDE,CE etc. |
| Nomor model: | TB762-10 |
| Kuantitas min Order: | 500 Piece/Pieces |
|---|---|
| Kemasan rincian: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Waktu pengiriman: | 5-20 days |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 1000000 Pole/Poles per Month |
| Color: | Grey | Pitch: | 7.62mm |
|---|---|---|---|
| Voltage: | 300V | Current: | 15A |
| Plastic: | PBT | Screw: | Steel |
| Insulation Resistance: | Above DC500V, 500MΩ | Contact Resistance: | Less than 8mΩ |
| Poles: | 6-21 poles | Rated Surge Voltage: | No abnormal within 1 minute |
| Cahaya Tinggi: | electrical terminal block,barrier type terminal block |
||

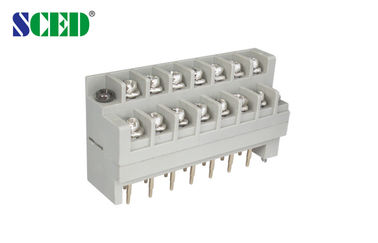

Power Supply barrier connector Double Gold Pins electrical terminal block connectors 600V 15A
Detailed product Description:

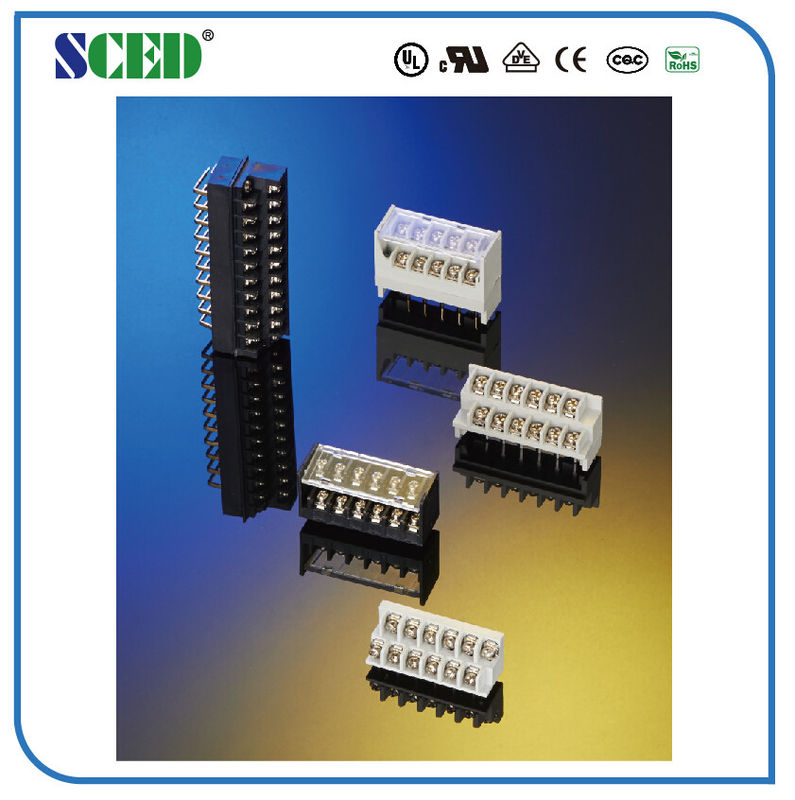

Pitch 7.62mm, 300V 15A, 4*6P-20*21P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Grey. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Competitive Advantage:
