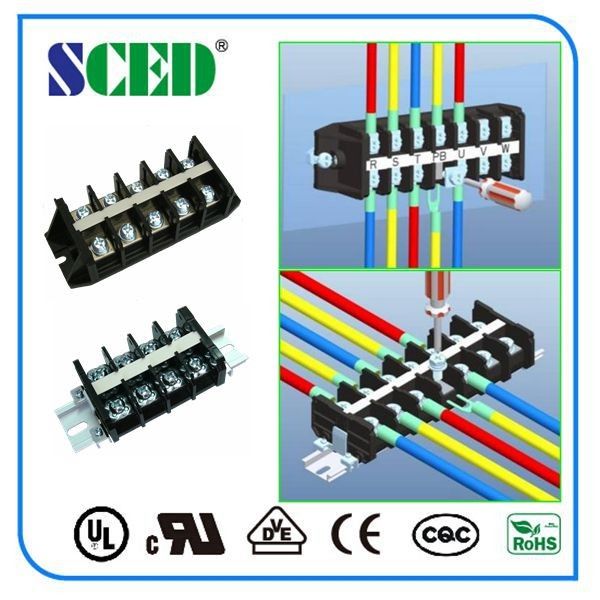

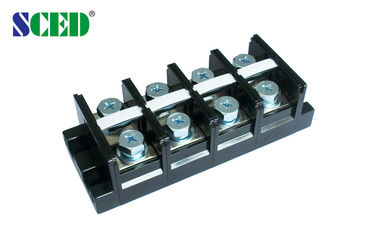

600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black

600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black

  • 600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
  • 600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black
Detail produk:
Tempat asal: Shenzhen, China
Nama merek: SCED
Sertifikasi: UL, CE, CQC
Nomor model: TR240-00-BM0
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100
Harga: Get latest price
Kemasan rincian: Standard Export Carton
Waktu pengiriman: 7-20 working days
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 1KK poles each monthly
Kontak
Detil Deskripsi produk
Type: Panle mount type Pitch: 24.00mm
Poles: Any poles Materail: PC
Color: Black Screw: M10
Cahaya Tinggi:

pcb wire terminals

,

wiring terminal blocks



600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 240 600 / 240
Wire Range AWG 4-250kcmil 4-250kcmil
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 /240 1000 / 240 1000 / 240
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 125
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 18-20
Screw Torque mm M10 / 50-60







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

600V 240A 36.00mm Pitch pcb mount screw terminal block High Current Black 1
